Pentacube Oddities with Orthogonal Rotary Symmetry
Introduction
A pentacube is a solid made of five cubes joined
face to face.
An oddity (or Sillke Figure)
is a figure with even symmetry
formed by an odd number of copies of a polyform.
In 1996, Torsten Sillke reported
having found a point-symmetric arrangement of 17 F pentacubes.
He asked whether 17 is the least such odd number,
and more generally whether an odd number of copies of a polycube can be arranged
to achieve any given symmetry.
This was the earliest known mention of polyform oddities.
Polycubes have 33 symmetry classes (including asymmetry),
and 31 of them have even order.
That is too many to show here.
Instead I show only oddities with orthogonal rotary symmetry.
In all pictures, the cross-sections are shown from top to bottom.
If you find a smaller solution, please write.
For other classes of symmetry, see:
Orthogonal Rotary Symmetry
Orthogonal rotary symmetry is the symmetry of 180° rotation
around an axis parallel to some edges of the cells.
The smallest example of a polycube with orthogonal 180° rotational
symmetry and no stronger symmetry
is this hexacube, found by W. F. Lunnon:

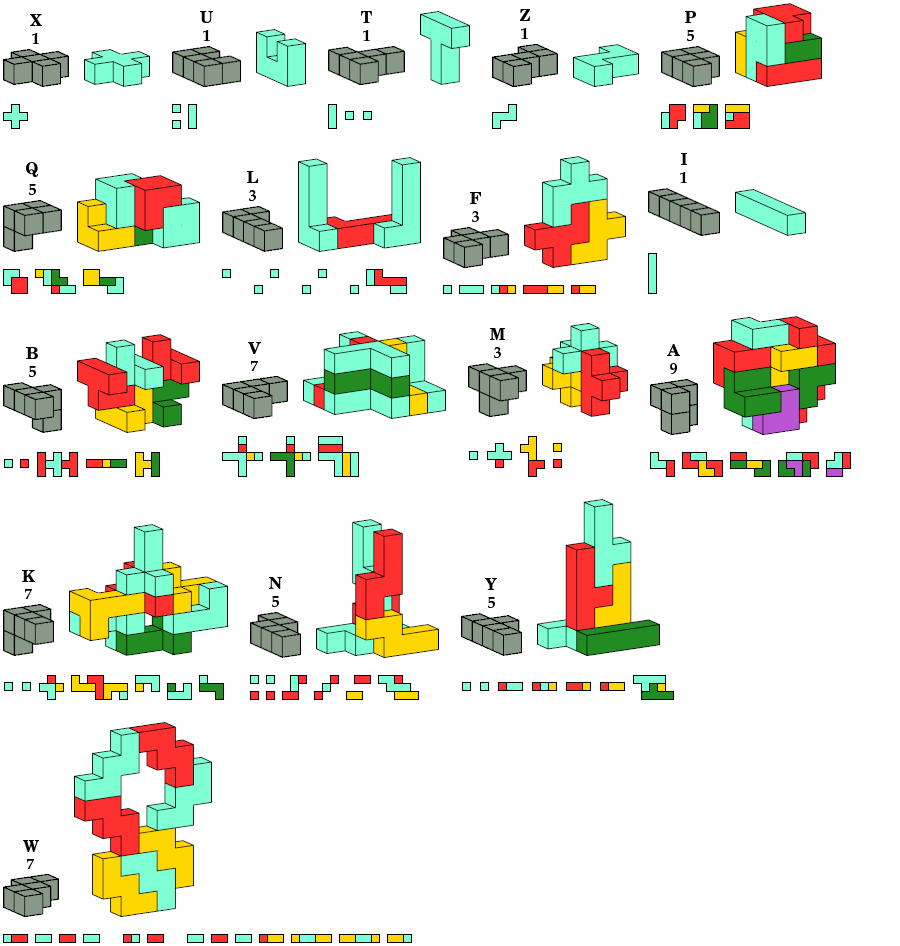

Achiral Pentacubes
The solutions for pentacubes
I,
T,
U,
X
and
Z
are trivial.
Those pentacubes already have orthogonal rotary symmetry.
The solutions for pentacubes F and W
are minimal orthogonal mirror oddities for the corresponding pentominoes.

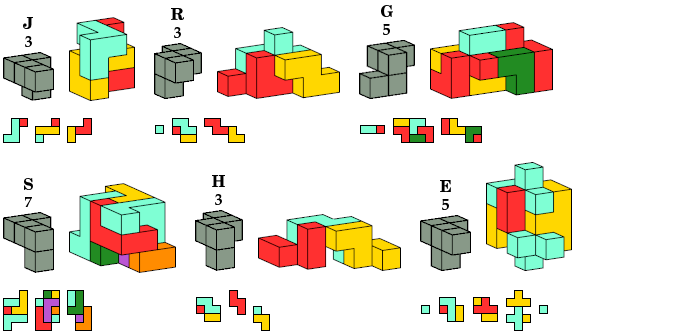

Chiral, Disallowing Reflection

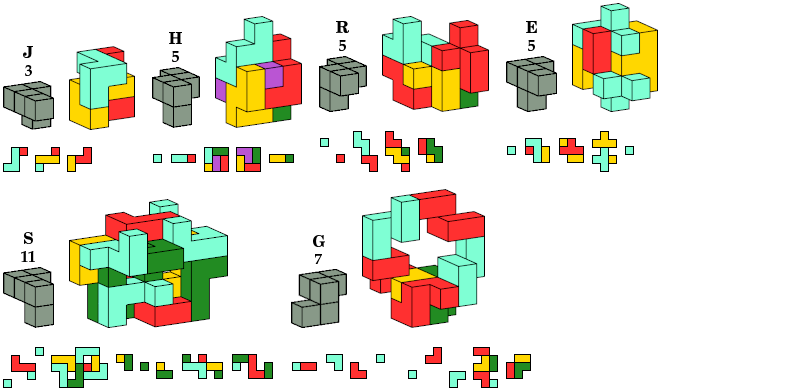

Chiral, Allowing Reflection
Last revised 2023-02-17.
