# More Prime Patterns

### Composite, Prime

Palindromic Sophie Germaine Primes (1 & 2)

### Prime 30103

Fermat & Mersenne Numbers

Minimum Difference Prime Squares Prime Queen Problem

### Prime 5882353

Primes Plus Even Number 8 Consecutive Primes

### Prime Rectangles

A Prime Staircase

Primeval Primes

### Composite, Prime

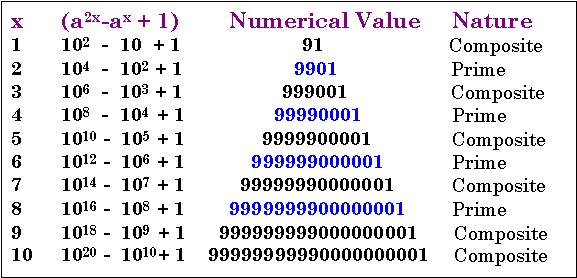

NOTE: pattern alternates between composite and prime (until x=10). Too bad !

A. H. Beiler, Recreations in the Theory of Numbers p. 85

### Palindromic Sophie Germaine Primes (1)

191 & 383

39493939493 & 78987878987

If P is greater than 2 and is a prime, than if 2P+1 is also prime, P is known as a Sophie Germaine prime. There are many such primes but only 71  pairs with three to eleven digits if  both primes are palindromic. Above are the lowest and the highest such pairs.

If Q (2P+1) is itself a Sophie Germaine prime there are a total of 19 such triplets where each prime is palindromic. They range in size from 23 digits long to 39 digits long The smallest such triplet follows:

19091918181818181919091,     38183836363636363838183,      76367672727272727676367

Harvey Dubner, JRM 26:1, 1994, pp38-41t

### Palindromic Sophie Germaine Primes (2)

If we let A=1, B=2, C=3, etc than

P+A+L+I+N+D+R+O+M+E+S + A+R+E + F+U+N = 191

Also

15551 (the smallest palindromic prime producing another in this way) when written in words

F+I+F+T+E+E+N + T+H+O+U+S+A+N+D +
F+I+V+E + H+U+N+D+R+E+D + F+I+F+T+Y + O+N+E =
383

This courtesy of G. L. Honaker, Jr. (See Prime Queen Problem below)

### Prime 30103

30103 is the only known multi-digit palindromic prime found by averaging the divisors of a composite number.

30103 = (1 + 5 + 173 + 865 + 29929 + 149645)/6
30103 = (1 + 2 + 3 + 6 + 173 + 346 + 519 + 1038 + 29929 + 59858 + 89787 + 179574)/12

30103 = average of divisors of 149645
30103 = average of divisors of 179574

It was found by Jud McCranie and G. L. Honaker, Jr. in July/98.

See Carlos Rivera’s Prime Puzzles & Problems

### Fermat & Mersenne Numbers

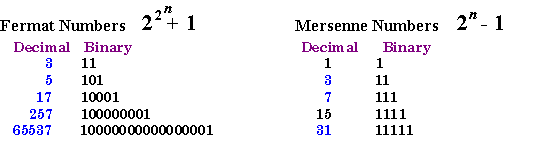

Fermat numbers , when expressed in binary, have all zeros with a one at each end. Mersenne numbers have all ones.
Both the decimal and binary numbers are palindromes (read the same backwards as forewards).

### Minimum Difference Prime Squares

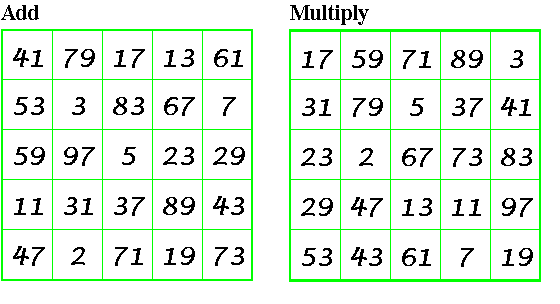

These two squares each contain the 25 primes that are less then 100.

The maximum sum of any row, column or diagonal is 213
The minimum sum is 211
The difference (which is the minimum possible) is 2

Multiply
The maximum product of any line, column or diagonal is 19013871
The minimum product is 18489527
The difference which is also the minimum possible .is 524344

JRM vol. 26: 4, 1994 ,p. 308,309 Prob. 2094 proposed by R. M. Kurchan, solution by M. Reed

### Prime Queen Problem

Proposed by G. L. Honaker, Jr. on Nov. 15, 1998.

 37 24 45 4 39 22 47 62 44 5 38 23 46 61 40 21 25 36 43 60 3 20 63 48 6 59 26 35 64 41 2 19 27 30 57 42 1 34 49 12 58 7 54 29 52 13 18 15 31 28 9 56 33 16 11 50 8 55 32 53 10 51 14 17

Find the greatest number of prime squares that a queen can attack if placed on an n by n knight's tour solution. For the purpose of this problem, when considering if the queen is attacking a particular square, assume the intervening squares are vacant.
The knight's tour is a numbered tour of a knight over a otherwise empty board visiting each square once only.
The possible tour solutions are in the trillions.

 3 14 19 24 1 20 9 2 13 18 15 4 25 8 23 10 21 6 17 12 5 16 11 22 7

By early December, 1998, Mike Keith had found these two solutions.. The order-8 has all of the 18 prime numbers less then 64 under attack by the queen placed on number 35. The order-5 square is also perfect because the queen is attacking all 9 of the primes when placed on the number 25.

In fact, Mr. Keith found perfect solutions also for order-6 and order-7 squares. It is impossible to have a knight tour solution for orders 2, 3 , or 4 and Mr. Keith conjectures that it is impossible to have a perfect solution for boards of order-9 or greater.

Can you find any other perfect solutions to this problem?

On April 1, 2004, I received an email from Jacques Tramu. He enclosed a solution he had found for the perfect order 9 square of this type. All 22 primes in the number range of 1 to 81 are attacked by the queen.

He shows  the solution at http://mapage.noos.fr/echolalie/q9.htm

A few days later I also received a notice of this solution from G. L. Honaker, Jr.,  the originator of this problem.

 13 76 15 20 11 74 25 22 9 16 19 12 75 26 21 10 67 24 77 14 17 28 73 56 23 8 69 18 81 78 43 60 27 68 57 66 79 44 29 2 55 72 59 70 7 30 51 80 61 42 3 36 65 58 45 48 41 52 1 54 71 6 35 50 31 46 39 62 33 4 37 64 47 40 49 32 53 38 63 34 5

April 12, 2004. 5 minutes after uploading the previous addendum, I checked my email. Another update from G.L.
Jacques has just published a perfect order 10! See it at his link shown above.

See Mike Keith's information on this problem at http://users.aol.com/s6sj7gt/primeq.htm

### Ulam's Prime Spiral

 272 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 271 212 161 162 163 164 165 166 167 168 169 170 171 172 173 228 270 211 160 117 118 119 120 121 122 123 124 125 126 127 174 229 269 210 159 116 81 82 83 84 85 86 87 88 89 128 175 230 268 209 158 115 80 53 54 55 56 57 58 59 90 129 176 231 267 208 157 114 79 52 33 34 35 36 37 60 91 130 177 232 266 207 156 113 78 51 32 21 22 23 38 61 92 131 178 233 265 206 155 112 77 50 31 20 17 24 39 62 93 132 179 234 264 205 154 111 76 49 30 19 18 25 40 63 94 133 180 235 263 204 153 110 75 48 29 28 27 26 41 64 95 134 181 236 262 203 152 109 74 47 46 45 44 43 42 65 96 135 182 237 261 202 151 108 73 72 71 70 69 68 67 66 97 136 183 238 260 201 150 107 106 105 104 103 102 101 100 99 98 137 184 239 259 200 149 148 147 146 145 144 143 142 141 140 139 138 185 240 258 199 198 197 196 195 194 193 192 191 190 189 188 187 186 241 257 256 255 254 253 252 251 250 249 248 247 246 245 244 243 242
 Probably everyone has heard the story about how Stanislaw M. Ulam discovered this pattern while sitting in a scientific meeting listening to what he described as a "long and boring paper." My first experience with his prime spiral was in the mid 70’s when I programmed it on my Apple II computer using Euler’s formula   x2 + x + 41. The graphics screen had a resolution of 40 x 40, and I can remember the thrill I received as I watched the screen slowly (but in those days I thought it was fast) fill up with a solid diagonal of 40 primes from one corner to the other. A good explanation of this pattern is in M. Gardner, Sixth Book of Mathematical Games, Scribner’s, 1971 The triangle plot and the linear plot both show the primes in neat columns. The linear plot with six numbers per line illustrates how all primes are 6n - 1 or 6n + 1 (except for 2 and 3).

### The Ellerstein Spiral

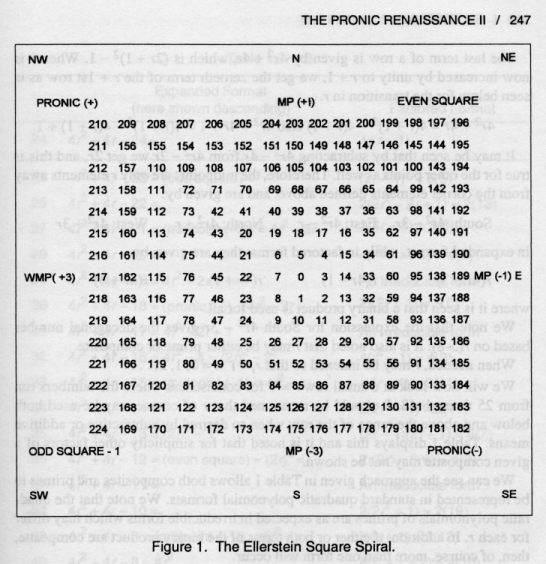

 Dr. Stuart Ellerstein expanded on this theme in a paper that appeared as The Pronic Renaisance II, in The Journal of Recreational Mathematics, Vol. 30:4, 1999-2000, pp. 246-250. A short introductory article appeared in JRM 29:3, pp. 188-189 The following image is from that paper. Note particularly that the even squares, and the odd squares - 1 appear in the right diagonal of this array. Note: A pronic number is one with the form x(x+1). It is also twice a triangular number. Click for larger view

 Dr. Ellerstein pointed out that Ulam's spiral also has the diagonal of squares with the other diagonal consisting of pronics (as does his).Here I show Ulam's spiral starting at 0. But instead of showing the primes, I show the diagonal of squares and the diagonal of pronics. Pronics are the product of two adjacent numbers. 72  71  70  69  68  67  66  65  64  99   73  42  41  40  39  38  37  36  63  98   74  43  20  19  18  17  16  35  62  97   75  44  21  06  05  04  15  34  61  96   76  45  22  07  00  03  14  33  60  95   77  46  23  08  01  02  13  32  29  94   78  47  24  09  10  11  12  31  58  93   79  48  25  26  27  28  29  30  57  92   80  49  50  51  52  53  54  55  56  91   81  82  83  84  85  86  87  88  89  90

A prime spiral arranged as a circle is thoroughly discussed and illustrated at Rom Sacks  http://www.numberspiral.com/

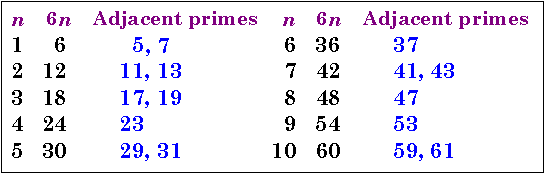

Is there at least 1 prime adjacent to each multiple of 6?

Dr. Ellerstein (see above section) advised me that the answer to the above question is NO!
The first exception is for n = 20
The 3 adjacent numbers are 119, 120, and 121    (119 = 7 x 17 and also 122 - 52, 120 = 6n, and 121 = 112

### A Reversible Sequence

1193, 1201, 1213, 1217,1223,1229,1231, 1237, 1249, 1259

A sequence of ten consecutive primes. Each one of these primes is still a prime when the order or the digits is reversed.

This sequence was discovered by Carlos Rivera, and is registered by him in Sloane’s Integer Sequences as A040104.

### Prime 5882353

5882353 = 5882 + 23532

This is the only prime number I know with this property. Are there other primes like this?

See examples of composite numbers with this or similar properties at my Narcissistic Numbers page.

### Primes + Even Number

Does this pattern continue producing primes forever?

No. See Ulam's Spirol (above). Aguydude pointed this out to me.

### 8 Consecutive Primes

8 consecutive primes 11    13   17   19   23   29   31    37
the difference between   2     4     2      4      6     2      6

These eight consecutive primes have the form k, k + 2, k + 6, k + 8, k + 12, k + 18, k + 20, k + 26.

The next such series starts with the prime 15,760,091 and  there are 6 more such series below 1,000,000,000

Martin Gardner, The Last Recreations, p204

### Prime Rectangles

This pattern has 8 rows of 11 consecutive primes summing to a prime number.
Each row stars with the second prime in the row above it.
To save space, all primes (except the totals) are of the following form: 352XXXX

This pattern was found by Carlos Rivera and appeared on Prime Puzzles & Problems in Aug./98.

Since then, Jud McCranie has found many more of these patterns. See his pattern with 9 rows of 97 primes each at
Carlos Rivera’s WWW site .

### A Prime Staircase

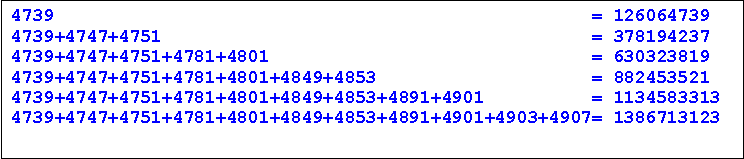

To save space, all primes (except the totals) are of the following form: 12606XXXX

There are three more lines to this pattern. The first and last primes in the last line are 126064739 and 126065033. The sum of this line is 2143103093.

This pattern was found by Carlos Rivera and appeared on his Prime Puzzles & Problems in Aug./98.

### Prime 1129

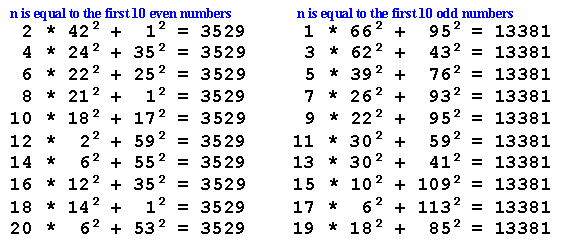

 Primes 1009 and 1201 have the same property. The smaller prime numbers 241,409, 601, and 769 almost have this property. In each case the only n for which there is no solution is n = 7.Charles Ashbacher, JRM 24:3, 1992, pp202 Carlos Rivera (see his Prime Puzzles & Problems) sent me on Aug. 8/98, the solution below for n equals the first ten even numbers. Two days later he e-mailed me the first example he had found where n is restricted to the first ten odd numbers.

### Fermat Product Plus 2

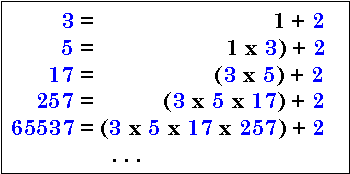

 Every Fermat number is the product of all previous Fermat numbers plus 2.

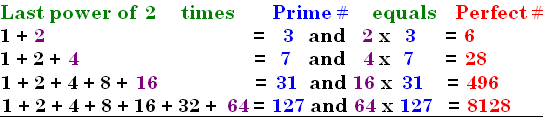

### Perfect Numbers from Primes

This is spelled out by Euclid in his Proposition 36 of Book IX of the Elements.

December, 2005: V.V. Raman reports "that every perfect number is 1 (mod 9)?"

See an excellent paper on Perfect numbers at
http://www-groups.dcs.st-and.ac.uk/~history/HistTopics/Perfectnumbers.html

### Primeval Primes

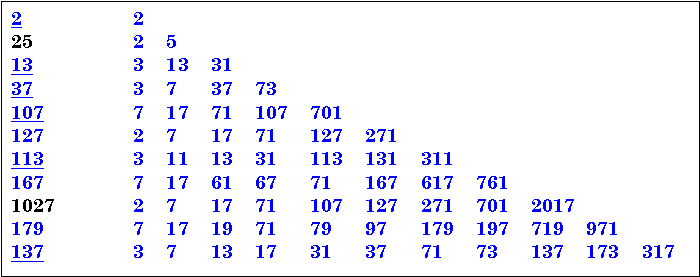

In each case, the number in the left column is the lowest number that includes this many primes.
The underlined numbers are Primeval Primes.

See more on Primeval Primes at Mike Keith’s page at http:users.//aol.com/s6sj7gt/primeval.htm

### A Prime Circle

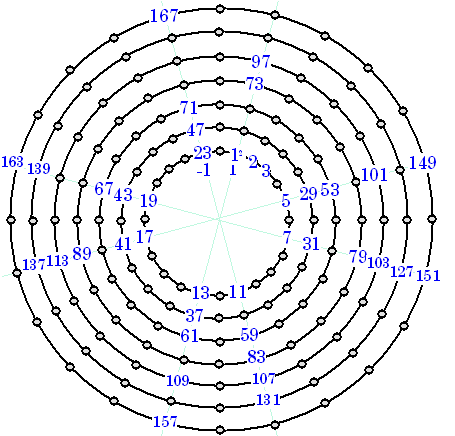

 I received this diagram via email from a C. Robin in May of 2003.Now, in March, 2005 I have finally got around to posting it! Notice that along each radial, the numbers are separated by 24. Pattern by C. RobinClick on the image to enlarge it.

### Prime # 57

(57) = 24 and 5757 - 24 is prime

57 x 225 - 1 is prime

57 + (100 x 2n ) are primes for n = -1, 0, 1, 2, 3, 4 & 5

I modestly refer to this as "Heinz's number".

See more curios at http://primes.utm.edu/curios/

### Butterfly Primes

Reginald Brooks has recently completed an extensive work on what he refers to as Butterfly Primes.

I was made aware of this by several emails from him, the most recent being March 2, 2006.

His site contains much information and many attractive multicolored tables.

This is a prime example of what I (and others) have often claimed, that
"mathematics is a study of the patterns of numbers!"

Reginald's papers (including other number pattern topics) may be viewed at

http://www.brooksdesign-cg.com/Code/Html/arthry2.htm
