All of the normal magic stars (from orders 6 to 14) on these pages have been found by a computer search. Unlike magic squares, with their regular pattern of an orthogonal array, magic stars have a different pattern for each order and, in fact, multiple patterns within each order. To find solutions for magic stars with these different patterns would require a separate algorithm for each.
I have developed a search algorithm which requires only modest program alterations to adapt to each different pattern. Using an exhaustive search routine has the added advantage that the solutions may be placed in an ordered list.
However, with increased order size, comes increasing work to adapt the program, and increasing search time to find solutions. For this reason, I have not yet tackled orders greater then 14.
On June 26, 2001, Simon Whitechapel sent me an e-mail with a link to a Web site he published. It contains 6 magic stars, one each of orders 15 to 20. They are all of pattern A and all were found by him using a Pascal program.
I show 6 new solutions on this page. All are obtained from his solutions
by complimenting and then normalizing .
See my http://www.geocities.com/~harveyh/magicstar.htm page for more information on these steps.
I then show the other possible patterns for each order. They appear in blank form, and await the discovery of solutions.
|March 1, 2005 update
I now have a page for Simon Whitechapel, showing emails I received from him as he explored large magic stars.
I also have a page for Jon Wharf. He confirmed my count of solutions for all patterns of orders from 6 to 11 in 2003. I also show on his page solutions he supplied for almost all the blank patterns I show on this page for orders 15 to 20.
And my new page for Andrew Howroyd show emails in Feb. 2005 where he also confirmed my count of solutions for all patterns of orders from 6 to 11 (he was unaware of Jon's work). He has also made discoveries in orders 10 and 11 permutations between patterns.

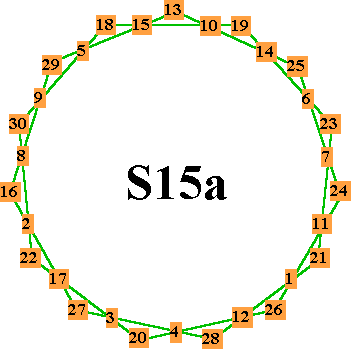

Order-15 pattern A

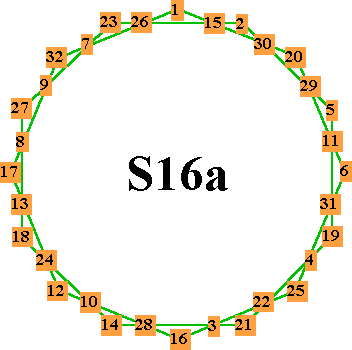

Order-16 pattern A

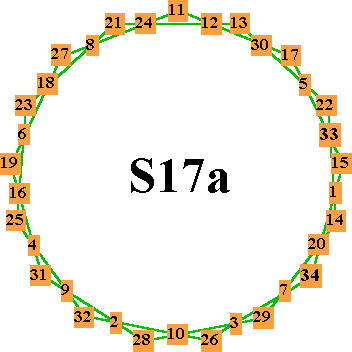

Order-17 pattern A

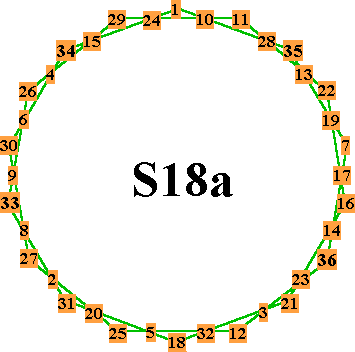

Order-18 pattern A

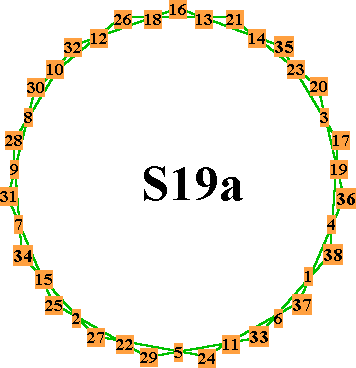

Order-19 pattern A

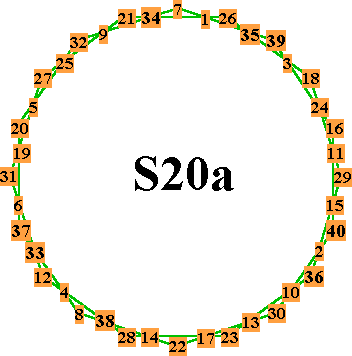

Order-20 pattern A
Order- 15 uses numbers from 1 to 30.
Types of patterns:
All orders have at least 1 continuous pattern.
Other Patterns - Order 16
Order- 16 uses numbers from 1 to 32.
Types of patterns:
Other Patterns - Order 17
The 7 order-17 patterns of normal magic stars all use the numbers from 1
Each of the 17 lines sum to the magic constant of 70.
Because 17 is a prime number, all 7 patterns are continuous (they may be drawn without lifting pen from paper).
The 7 order-18 patterns of normal magic stars all use the numbers from 1
Each of the 18 lines sum to the magic constant of 74.
Types of patterns: A = 2 - 9 sided
figures (enneagons), B = 3 hexagons, C = 2 - 9a stars, E = 6 triangles, G= 2 - 9c stars,
Other Patterns - Order 19
The 8 order-19 patterns of normal magic stars all use the numbers from 1 to 38.
Each of the 19 lines sum to the magic constant of 78.
Because 19 is a prime number, all 8 patterns are continuous.
Normal magic stars ( a review)
All normal magic stars
The 8 order-20 patterns of normal magic stars all use the numbers from 1 to 40.
Each of the 20 lines sum to the magic constant of 82.
Each pattern has 40 aspects due to rotations and reflections.
Description of order-20 patterns.
A = 2 decagons
From the forgoing, it is obvious that there are multiple patterns per order and the number of patterns increase by one for each new odd order.
Notice that pattern 'A' has 4 intersections per line, 'B' has 6, 'C' has
8, 'D' has 10, and 'E' has 12, 'F' has 14, 'G' has 16, and 'H' has 18
intersections per line. For a normal magic star, the numbers are always placed on
the two outside intersections of the lines.
By patterns F, G, and H, it is getting quite hard to count the number of intersections per line. Of course, to actually write the numbers for a solution onto the pattern, it would have to be enlarged quite significantly.
The challenge! I welcome, and will acknowledge, all solutions submitted for these patterns.
On Sept. 9, 2003, Simon sent me a text file listing solutions for pattern A for all orders from 15 to 50.
You may download the 29 kb file, Stars.txt
This is the last solution on the file. Anyone wish to draw a diagram for this huge star?
Data for a 50-v magic star (magic total = 202).
(99,100,1, 2), ( 6, 1,97,98), ( 2,97, 7,96), (98, 7, 3,94), (96, 3,95, 8), (94,95, 9, 4), ( 8, 9,93,92),
( 4,93,14,91),(92,14,86,10), (91,86,20, 5), (10,20,87,85), ( 5,87,89,21), (85,89,11,17), (21,11,88,82),
(17,88,84,13), (82,84,24,12), (13,24,90,75), (12,90,81,19), (75,81,31,15), (19,31,78,74), (15,78,83,26),
(74,83,29,16), (26,29,76,71), (16,76,80,30), (71,80,33,18), (30,33,70,69), (18,70,79,35), (69,79,22,32),
(35,22,72,73), (32,72,64,34), (73,64,23,42), (34,23,68,77), (42,68,25,67), (77,25,63,37), (67,63,45,27),
(37,45,61,59), (27,61,48,66), (59,48,38,57), (66,38,40,58), (57,40,43,62), (58,43,49,52), (62,49,41,50),
(52,41,55,54), (50,55,51,46), (54,51,44,53), (46,44,65,47), (53,65,56,28), (47,56,39,60), (28,39,36,99),
99, 6, 2,98,96,94, 8, 4,92,91, 10, 5,85,21,17,82,13,12,75,19,
100, 1,97, 7, 3,95, 9,93,14,86, 20,87,89,11,88,84,24,90,81,31,
Good work, Simon!
