Cell Shifts for Pentahex Pairs

Introduction

One figure can be tiled with one pentahex, and another figure can be tiled with another pentahex. The figures differ in only one cell. How near can the unmatched cells lie?

Here I show minimal shift vectors for pairs of pentahexes. The only unsolved case is I+T. (The I and T pentahexes are also probably not compatible. For compatibility results, see Pentahex Compatibility.)

If you find a smaller solution for any of these pairs, please let me know.

Summary

 ACDEFHIJKLNPQRSTUVWXYZ
A*1:41:11:21:21:11:31:21:21:21:21:21:41:11:61:81:51:21:81:41:21:3
C1:4*1:4√3:41:11:31:191:31:21:11:11:2√3:21:3√3:12√3:11:31:51:41:331:51:2
D1:11:4*1:41:41:41:41:21:21:21:11:11:11:21:51:71:11:31:21:51:31:2
E1:2√3:41:4*1:11:31:41:31:31:21:21:1√3:11:1√3:2√3:61:41:91:41:41:11:3
F1:21:11:41:1*1:21:61:11:21:31:11:11:31:31:21:31:21:71:31:41:11:1
H1:11:31:41:31:2*1:91:31:11:31:11:11:11:11:31:11:31:81:21:31:41:2
I1:31:191:41:41:61:9*1:51:61:11:31:21:81:45:5?1:31:61:35:351:31:2
J1:21:31:21:31:11:31:5*1:11:21:21:11:41:11:41:41:11:11:41:71:31:2
K1:21:21:21:31:21:11:61:1*1:21:21:21:21:11:11:21:31:31:11:11:11:2
L1:21:11:21:21:31:31:11:21:2*1:21:21:31:21:11:31:21:31:31:61:11:1
N1:21:11:11:21:11:11:31:21:21:2*1:11:21:21:31:31:31:21:31:31:11:2
P1:21:21:11:11:11:11:21:11:21:21:1*1:21:11:21:71:21:21:21:31:21:2
Q1:4√3:21:1√3:11:31:11:81:41:21:31:21:2*1:1√3:2√3:11:11:51:21:11:31:2
R1:11:31:21:11:31:11:41:11:11:21:21:11:1*1:31:11:31:31:41:31:21:2
S1:6√3:11:5√3:21:21:35:51:41:11:11:31:2√3:21:3*√3:31:21:31:15:51:31:2
T1:82√3:11:7√3:61:31:1?1:41:21:31:31:7√3:11:1√3:3*1:31:31:82√3:601:11:2
U1:51:31:11:41:21:31:31:11:31:21:31:21:11:31:21:3*1:61:61:11:71:2
V1:21:51:31:91:71:81:61:11:31:31:21:21:51:31:31:31:6*1:11:411:31:1
W1:81:41:21:41:31:21:31:41:11:31:31:21:21:41:11:81:61:1*1:31:41:1
X1:41:331:51:41:41:35:351:71:11:61:31:31:11:35:52√3:601:11:411:3*1:31:6
Y1:21:51:31:11:11:41:31:31:11:11:11:21:31:21:31:11:71:31:41:3*1:1
Z1:31:21:21:31:11:21:21:21:21:11:21:21:21:21:21:21:21:11:11:61:1*

Shifts

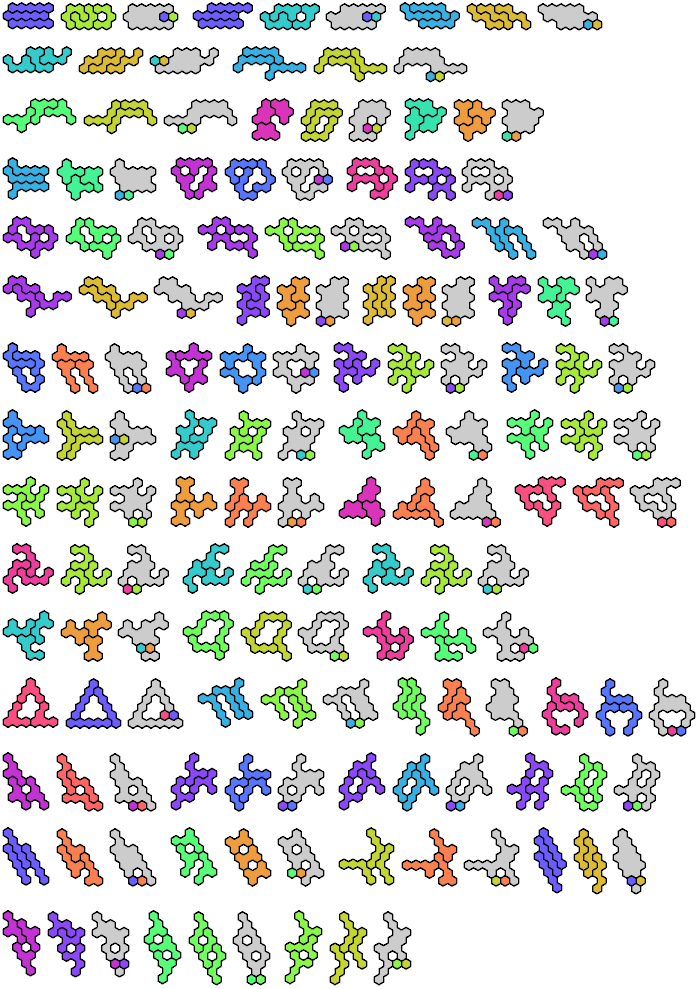

Shift 1

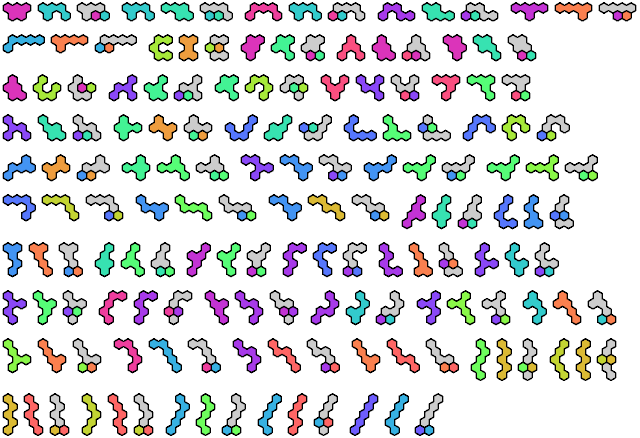

One Tile

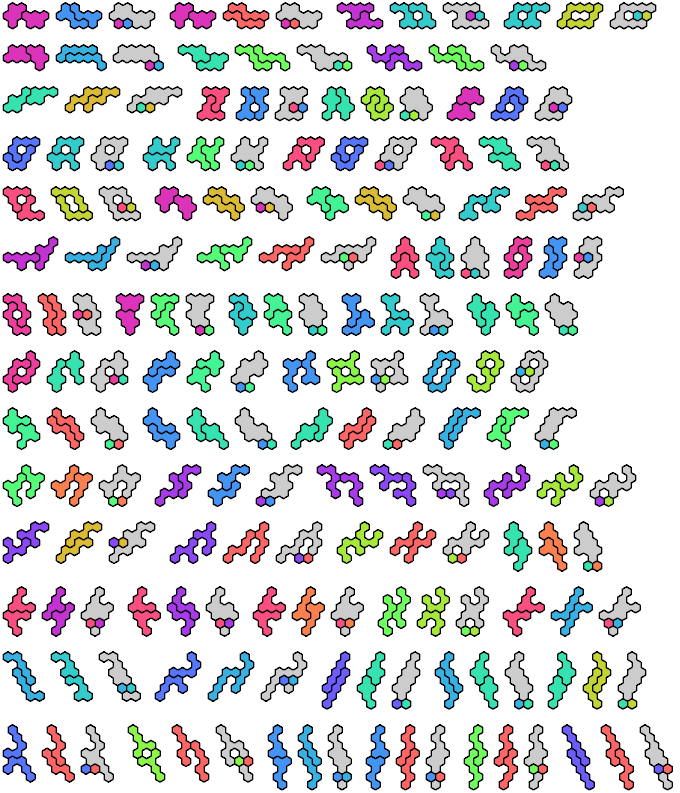

Two Tiles

Three Tiles

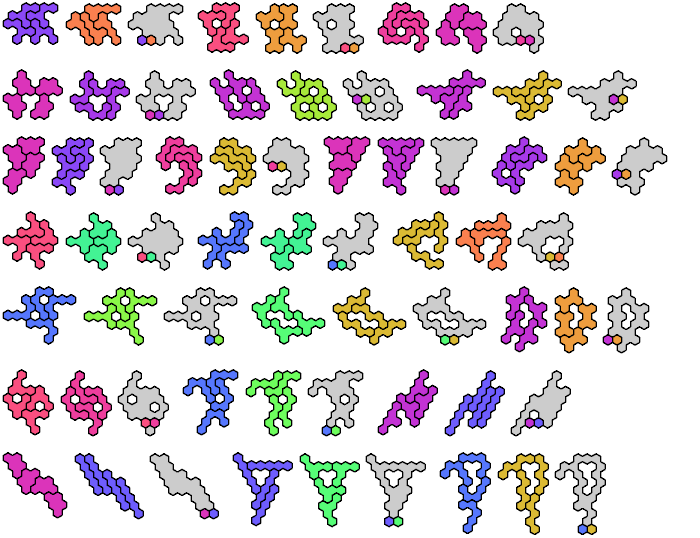

Four Tiles

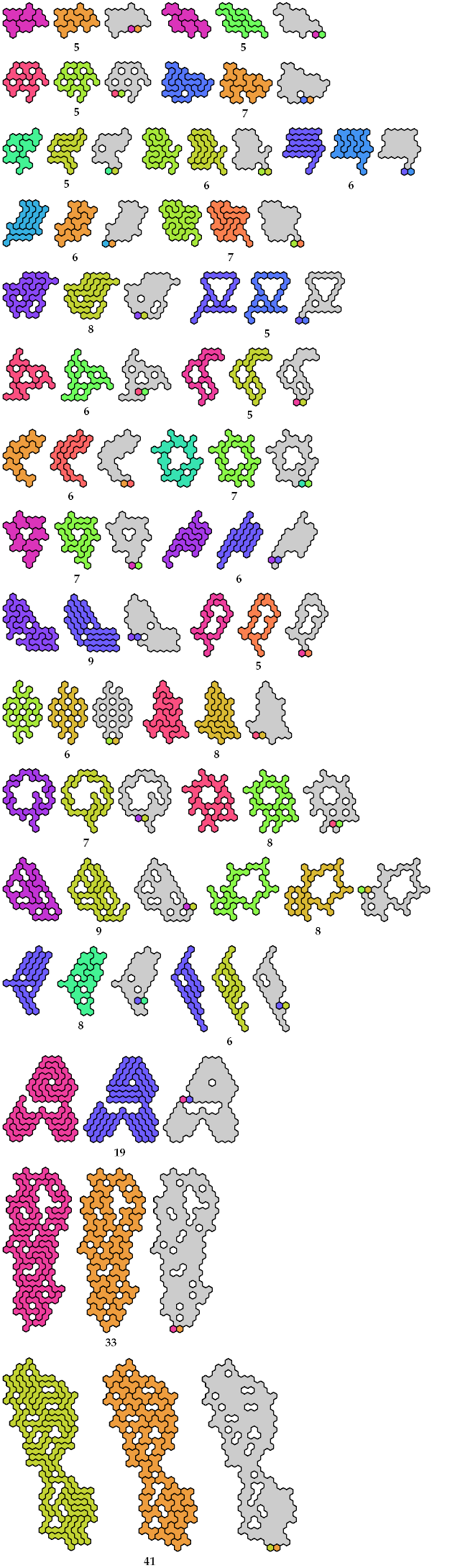

Five or More Tiles

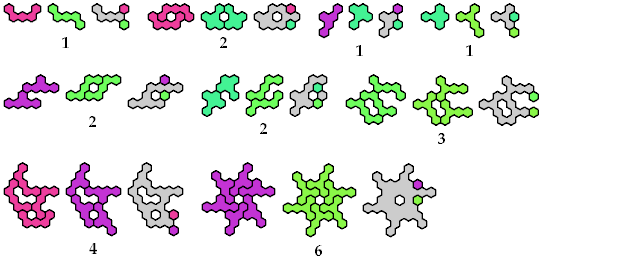

Shift √3

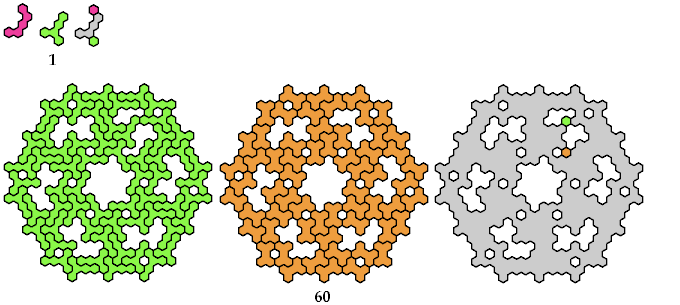

Shift 2√3

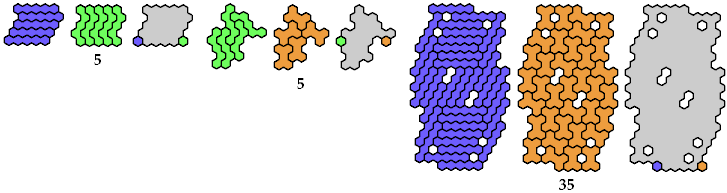

Shift 5

Last revised 2016-05-01.


Back to Polyform Cell Shifting < Polyform Compatibility < Polyform Curiosities
Col. George Sicherman [ HOME | MAIL ]
