Galvagni Figures for Polypents

A polypent is a figure made of regular pentagons joined edge to edge. A Galvagni figure is a figure that can be tiled by a polyform in more than one way—a kind of self-compatibility figure. Galvagni figures first appeared in Erich Friedman's Math Magic for November 2004.

Many of the polypent Galvagni figures up to order 5 were found by Scott Reynolds or Erich Friedman.

Here are minimal known Galvagni figures for polypents. The black tiles have no Galvagni figures. The gray tiles have no known Galvagni figures.

Monopent

Dipent

Tripents

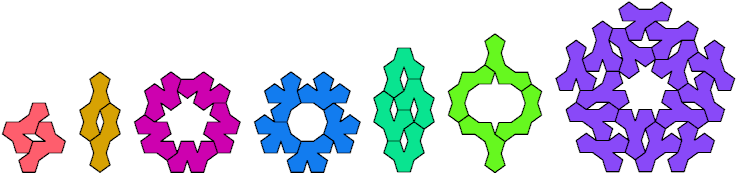

Tetrapents

Hypersymmetric Variants

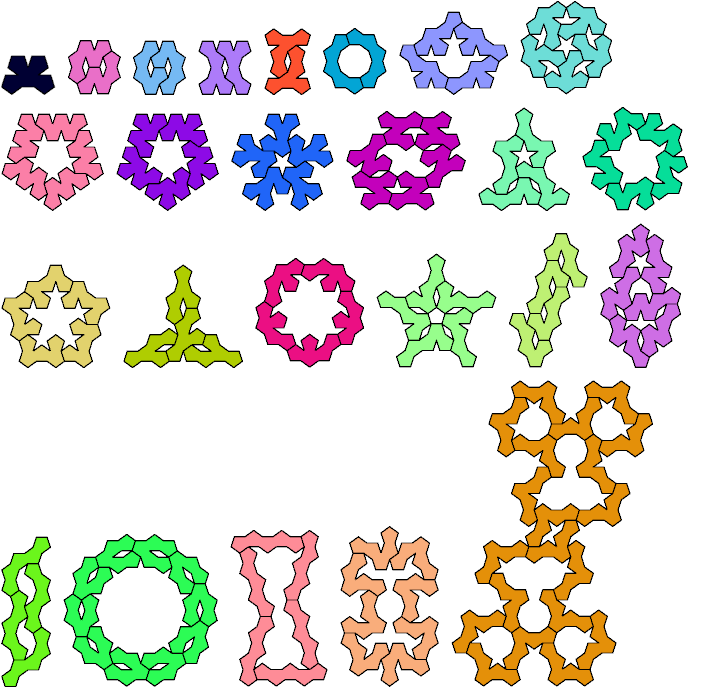

Pentapents

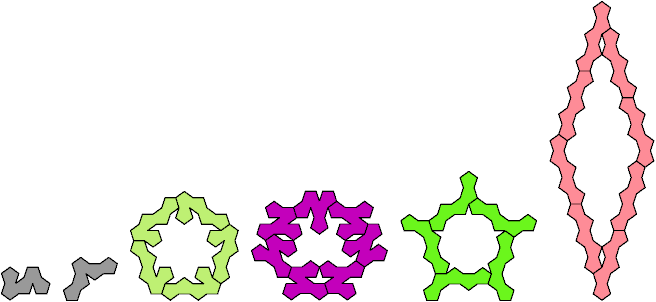

Hypersymmetric Variants

Hexapents

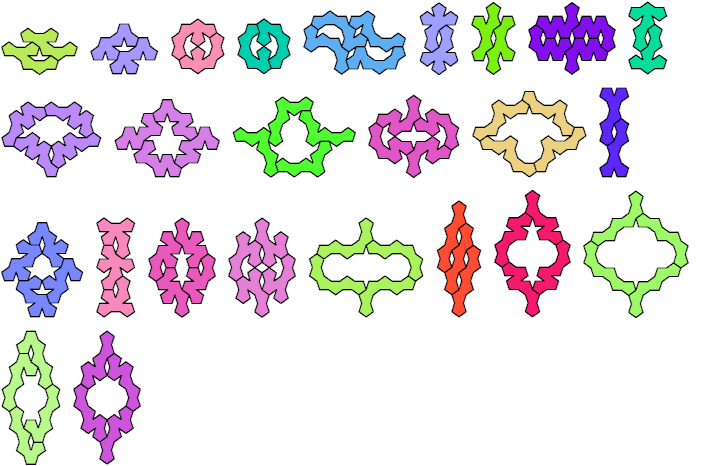

Two to four tiles

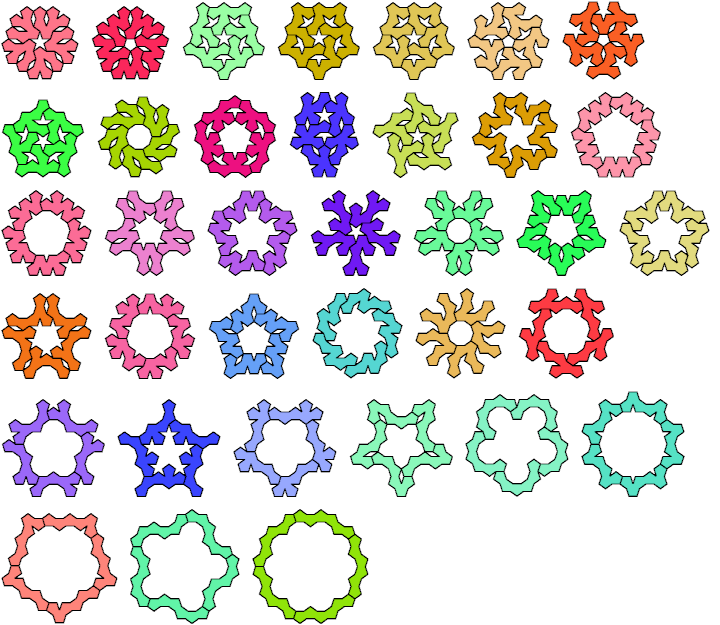

Five tiles

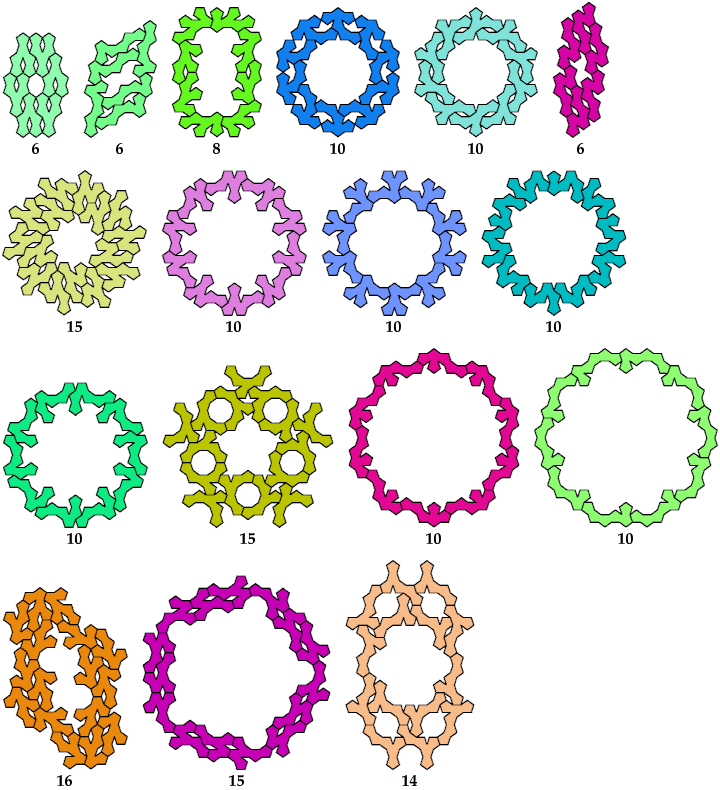

Six or more tiles

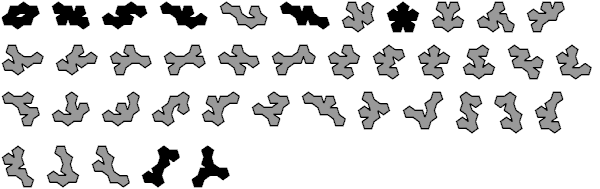

Unsolved

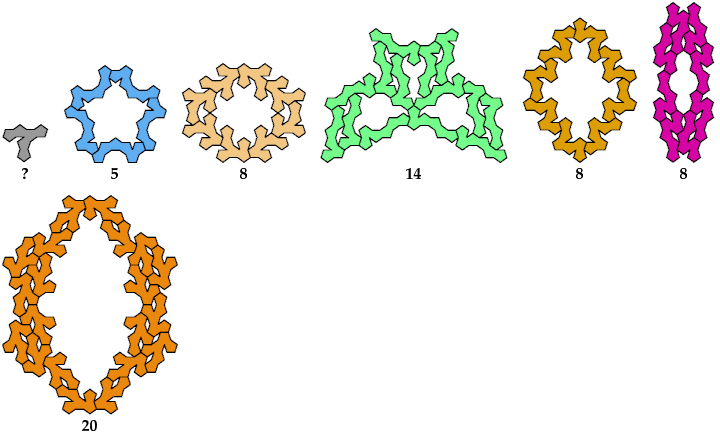

Hypersymmetric Variants

Heptapents

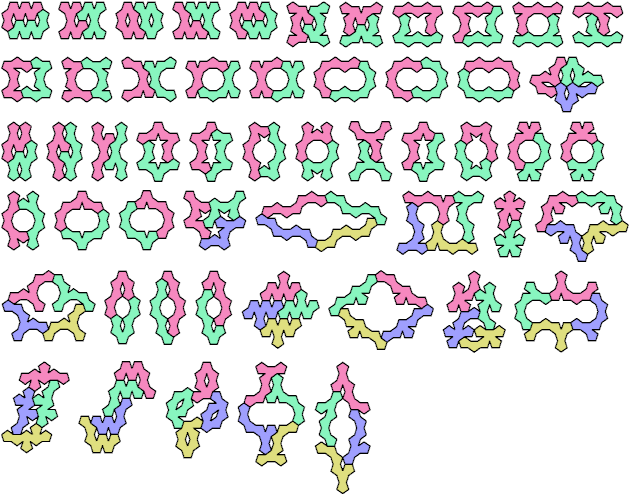

Two to four tiles

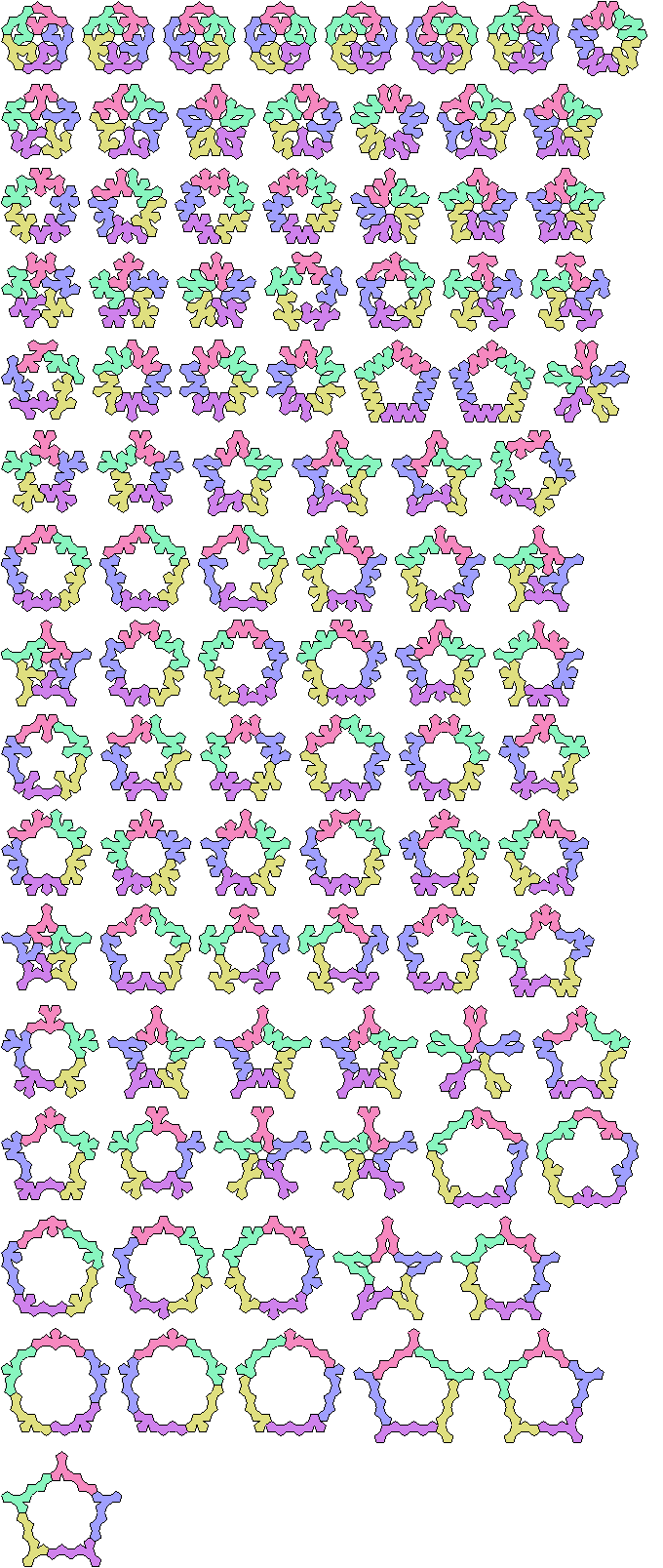

Five tiles

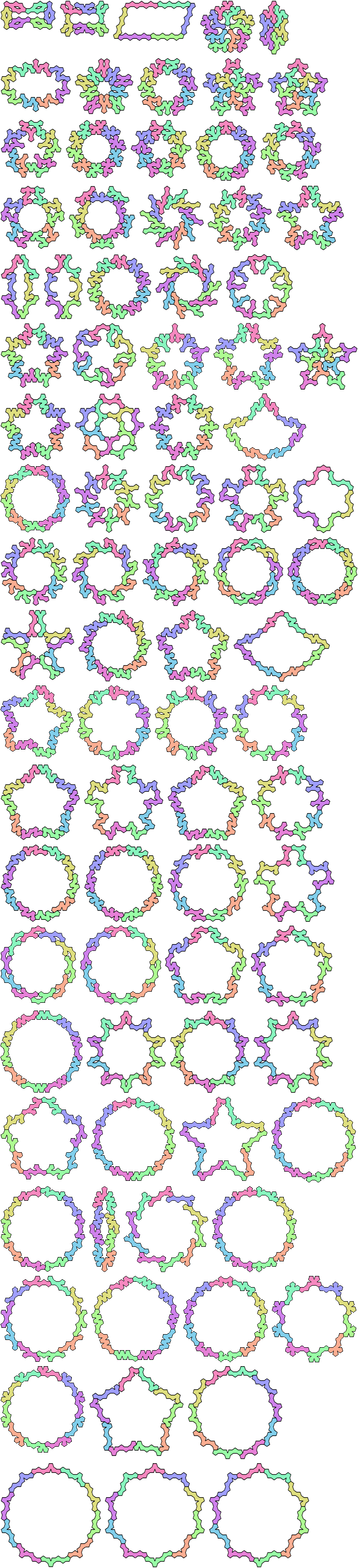

Six to ten tiles

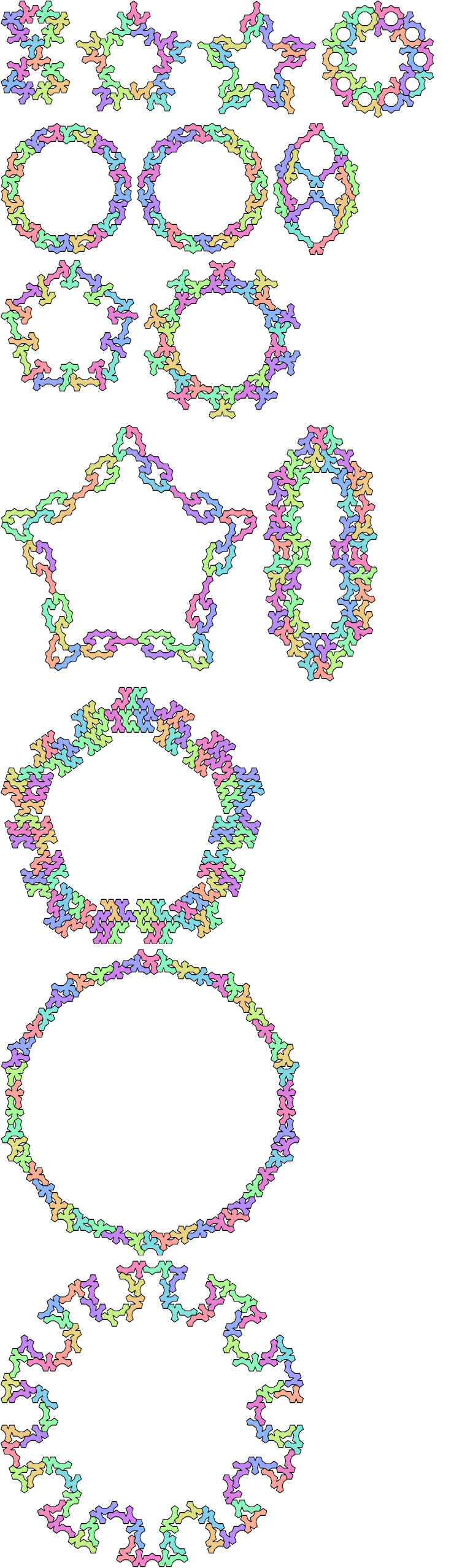

Fourteen or more tiles

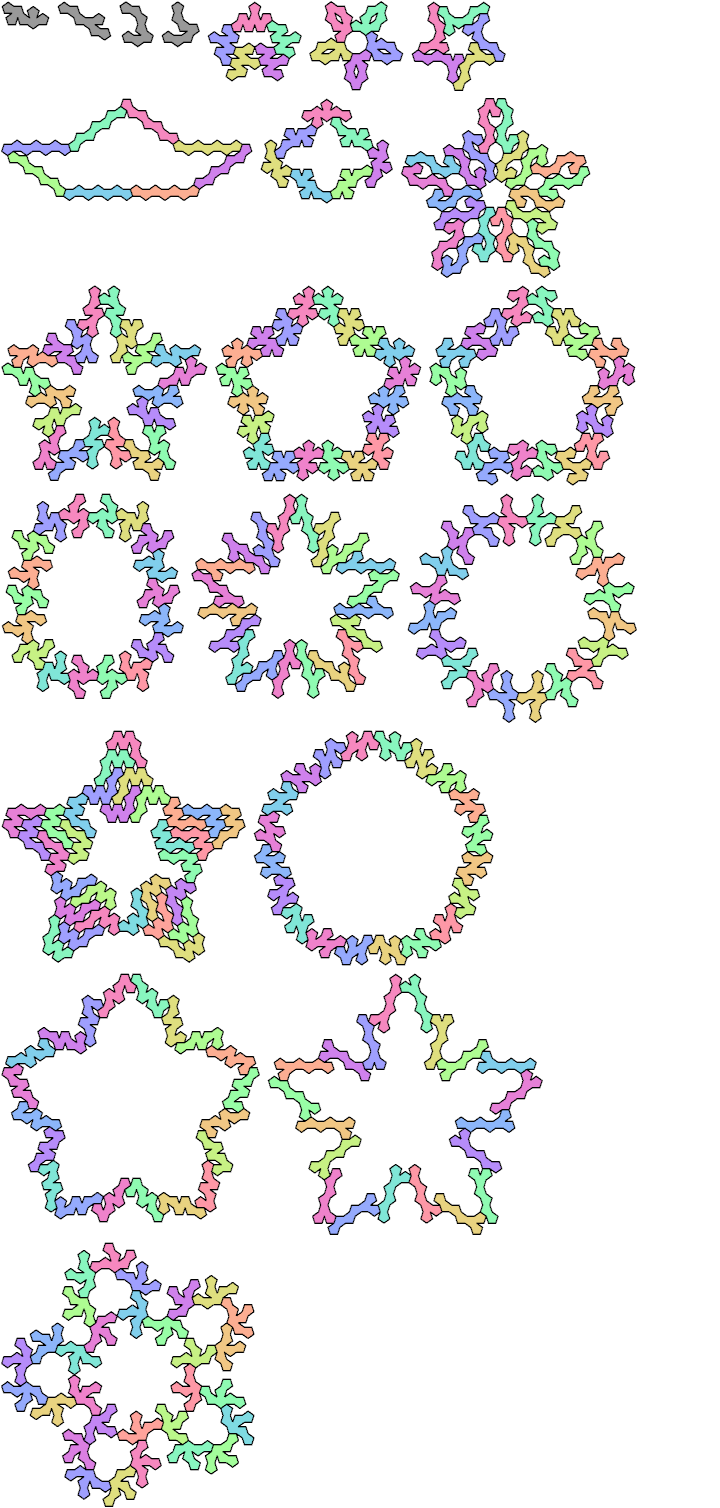

Hypersymmetric Variants

Last revised 2010-07-20.
