Baiocchi Figures for Polyominoes

A Baiocchi figure is a figure formed by joining copies of a polyform and having the maximal symmetry for the polyform's class. For polyominoes, that means square symmetry, or 4-way rotary with reflection. If a polyomino lacks diagonal symmetry, its Baiocchi figures must be Galvagni figures or contain Galvagni figures. Claudio Baiocchi proposed the idea in January 2008. Baiocchi figures first appeared in Erich Friedman's Math Magic for that month.

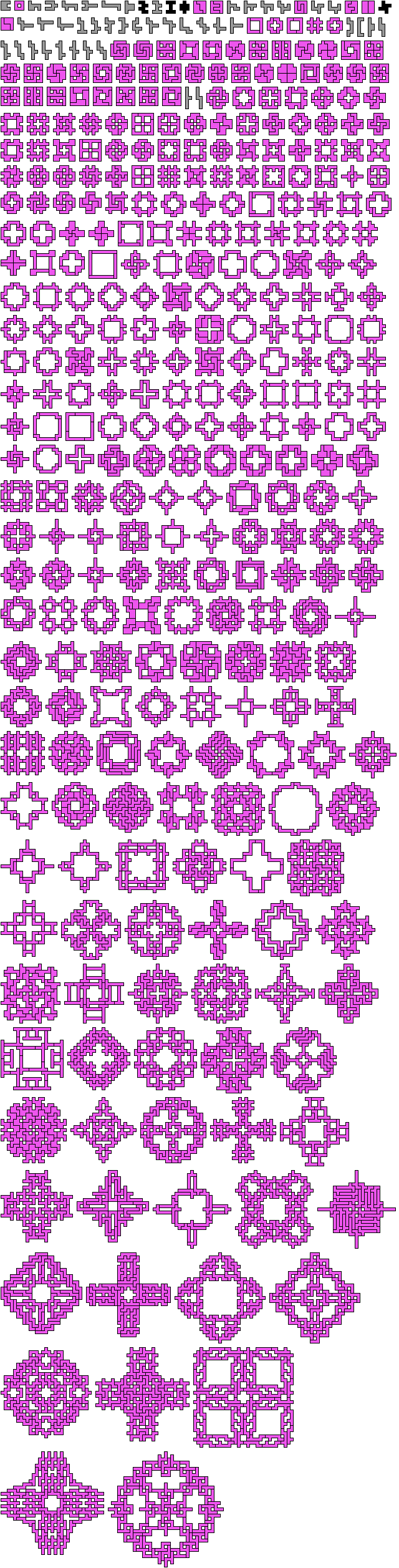

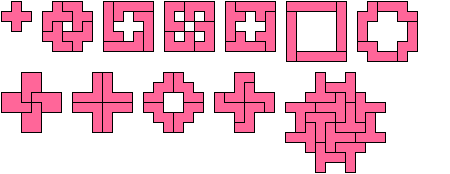

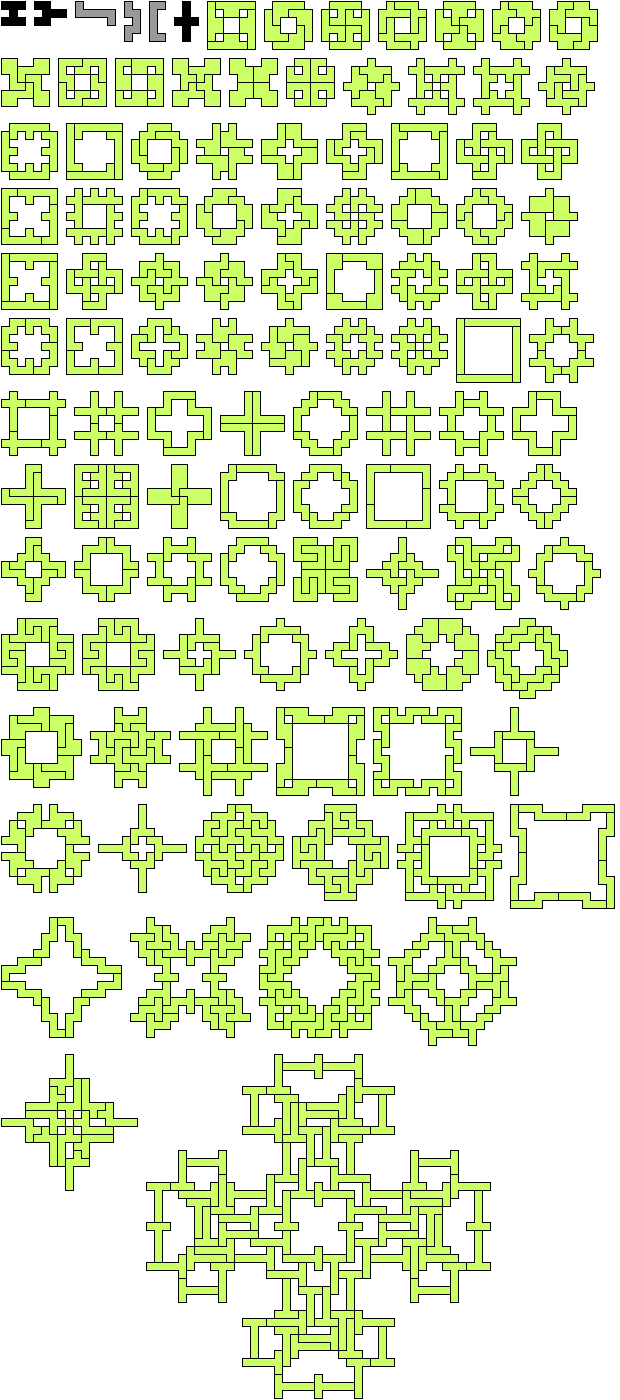

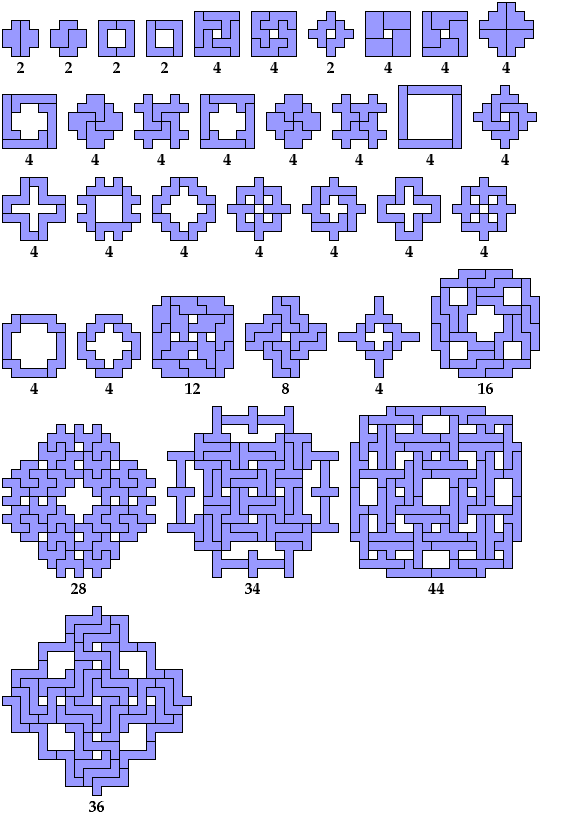

Here are minimal known Baiocchi figures for polyominoes of orders 1 through 8. Dr. Friedman found most of the smaller figures up to order 6, and Corey Plover discovered the 12-tile hexomino figure while investigating Galvagni figures. Not all these solutions are uniquely minimal.

A one-sided solution is one in which the polyomino is not reflected.

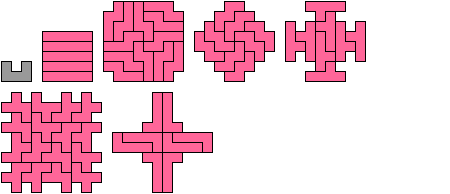

Holeless Variants

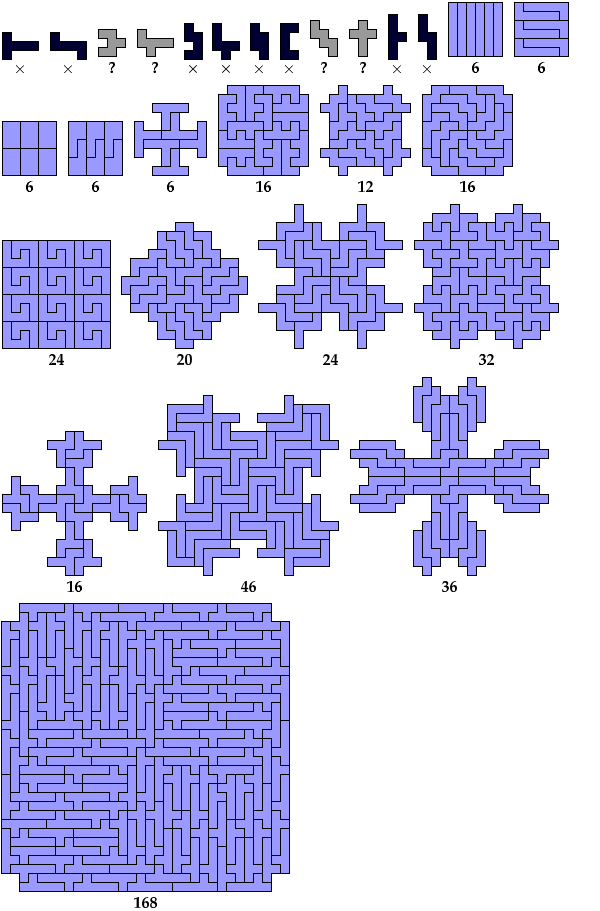

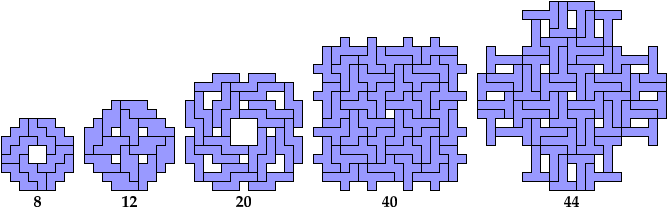

Holeless Variants

Variant with Minimal Hole Area

One-Sided Holeless Variants

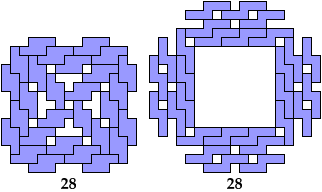

One-Sided Variants

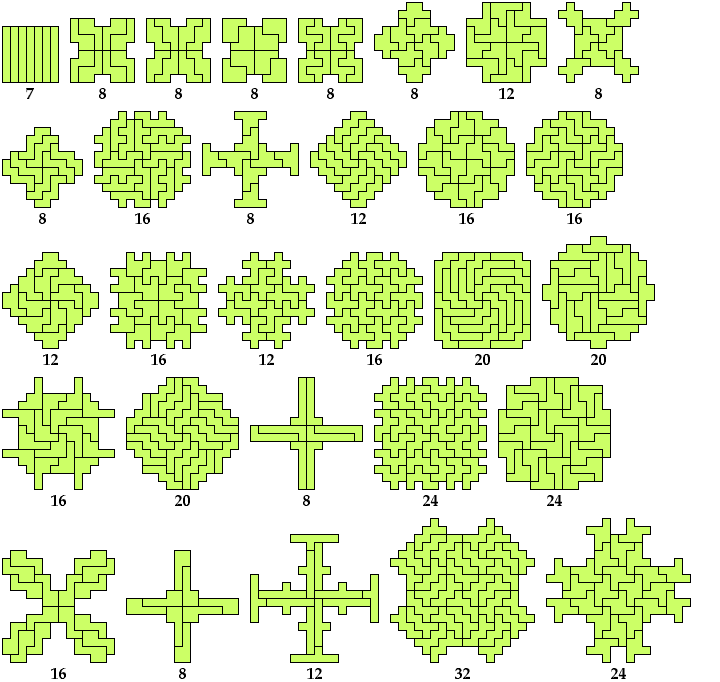

Holeless Variants

Variants with Minimal Hole Area

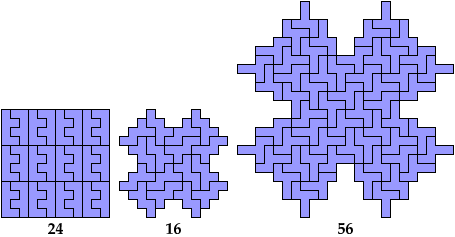

One-Sided Holeless Variants


Holeless Variants

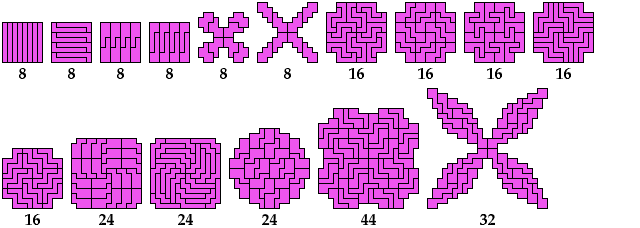

Holeless Variants

Last revised 2023-09-28.
