# Scaled Two-Pentomino L Shapes

• Introduction
• Nomenclature
• Table
• Solutions
• ## Introduction

A pentomino is a figure made of five squares joined edge to edge. There are 12 such figures, not distinguishing reflections and rotations. They were first enumerated and studied by Solomon Golomb.

Only five scaled pentominoes can tile L-shaped polyominoes:

Here I show which pairs of pentominoes can tile an L-shaped polyomino, using the pentominoes at various sizes. If you find a solution with fewer tiles than one of mine, please write!

Bryce Herdt contributed improvements.

## Nomenclature

I use Solomon W. Golomb's original names for the pentominoes:

## Table

This table shows the fewest scaled pentominoes known to be able to tile some L-shaped polyomino, using at least one of each pentomino. The L-shaped polyominoes are not necessarily the smallest that can be tiled, only the smallest that can be tiled with the fewest tiles.

FILNPTUVWXYZ
F * 6 5 × 3 × 2 4 × × 5 ×
I 6 * 2 5 2 5 5 2 6 12 5 5
L 5 2 * 2 2 5 3 2 3 6 5 5
N × 5 2 * 2 11 6 5 × × 8 ×
P 3 2 2 2 * 2 2 2 4 6 2 2
T × 5 5 11 2 * 42 6 15 × 8 ×
U 2 5 3 6 2 42 * 4 × 6 2 12
V 4 2 2 5 2 6 4 * 30 × 5 2
W × 6 3 × 4 15 × 30 * × 8 ×
X × 12 6 × 6 × 6 × × * 6 ×
Y 5 5 5 8 2 8 2 5 8 6 * 5
Z × 5 5 × 2 × 12 2 × × 5 *

## Solutions

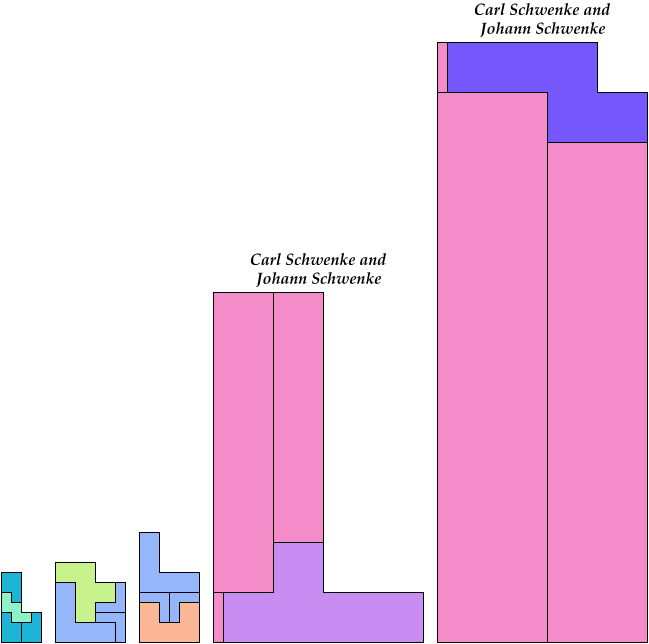

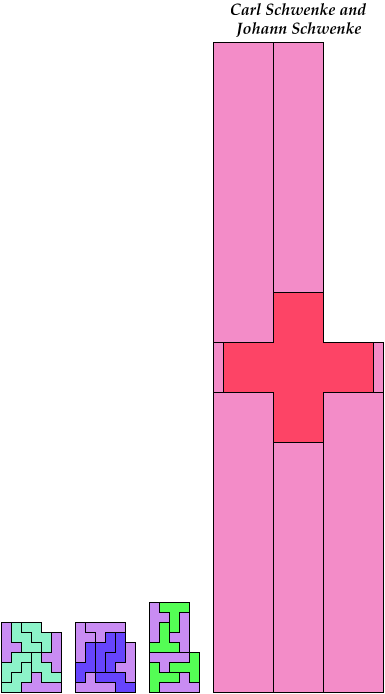

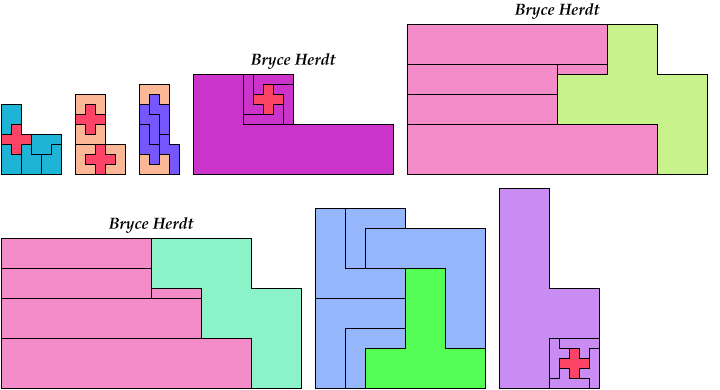

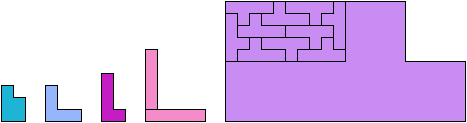

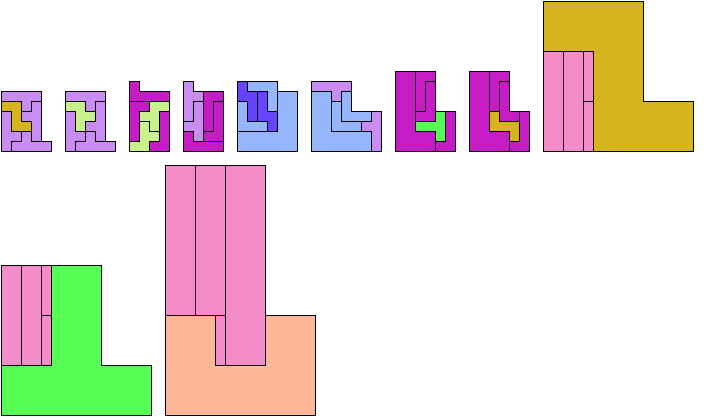

So far as I know, these solutions have the fewest possible tiles. They are not necessarily uniquely minimal.

### 42 Tiles

Last revised 2023-03-08.
