Quadruple Pentominoes

Introduction

Livio Zucca's Triple Pentominoes studies the problem of finding a compatibility figure for three pentominoes. This problem is quite hard.

In 2013 he proposed to me the same problem for four pentominoes. This problem is even harder! Here are the smallest known solutions. If you find a smaller solution or solve an unsolved case, please write.

Solutions

Cases that include 5I-5X, 5U-5X, 5V-5X, 5W-5X, or 5X-5Z are impossible. They do not appear in the table below.

If a cell is shaded, one or more of the corresponding triples is unsolved.

5F-5I-5L-5N5F-5I-5L-5P5F-5I-5L-5T5F-5I-5L-5U5F-5I-5L-5V

5F-5I-5L-5W5F-5I-5L-5Y5F-5I-5L-5Z5F-5I-5N-5P5F-5I-5N-5T5F-5I-5N-5U

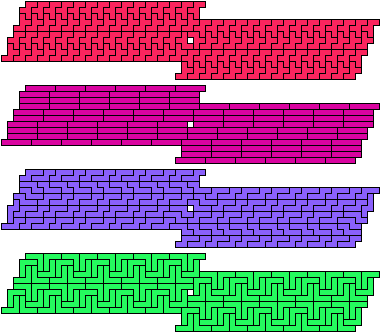

5F-5I-5N-5V5F-5I-5N-5W5F-5I-5N-5Y5F-5I-5N-5Z

5F-5I-5P-5T5F-5I-5P-5U5F-5I-5P-5V5F-5I-5P-5W5F-5I-5P-5Y

5F-5I-5P-5Z5F-5I-5T-5U5F-5I-5T-5V5F-5I-5T-5W5F-5I-5T-5Y

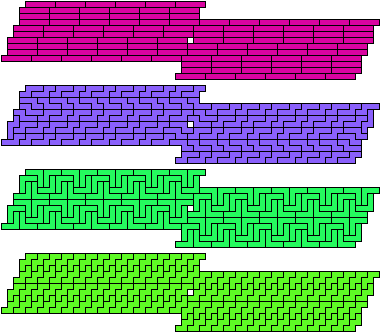

5F-5I-5T-5Z5F-5I-5U-5V5F-5I-5U-5W5F-5I-5U-5Y5F-5I-5U-5Z5F-5I-5V-5W

5F-5I-5V-5Y5F-5I-5V-5Z5F-5I-5W-5Y5F-5I-5W-5Z

5F-5I-5Y-5Z5F-5L-5N-5P5F-5L-5N-5T5F-5L-5N-5U5F-5L-5N-5V

5F-5L-5N-5W5F-5L-5N-5X5F-5L-5N-5Y5F-5L-5N-5Z5F-5L-5P-5T5F-5L-5P-5U

5F-5L-5P-5V5F-5L-5P-5W5F-5L-5P-5X5F-5L-5P-5Y5F-5L-5P-5Z
5F-5L-5T-5U5F-5L-5T-5V5F-5L-5T-5W5F-5L-5T-5X5F-5L-5T-5Y


Livio Zucca


5F-5L-5T-5Z5F-5L-5U-5V5F-5L-5U-5W5F-5L-5U-5Y5F-5L-5U-5Z5F-5L-5V-5W

5F-5L-5V-5Y5F-5L-5V-5Z5F-5L-5W-5Y5F-5L-5W-5Z5F-5L-5X-5Y

5F-5L-5Y-5Z5F-5N-5P-5T5F-5N-5P-5U5F-5N-5P-5V5F-5N-5P-5W5F-5N-5P-5X
5F-5N-5P-5Y5F-5N-5P-5Z5F-5N-5T-5U5F-5N-5T-5V5F-5N-5T-5W5F-5N-5T-5X

5F-5N-5T-5Y5F-5N-5T-5Z5F-5N-5U-5V5F-5N-5U-5W5F-5N-5U-5Y

5F-5N-5U-5Z5F-5N-5V-5W5F-5N-5V-5Y5F-5N-5V-5Z


Livio Zucca

5F-5N-5W-5Y5F-5N-5W-5Z5F-5N-5X-5Y5F-5N-5Y-5Z
5F-5P-5T-5U5F-5P-5T-5V5F-5P-5T-5W5F-5P-5T-5X5F-5P-5T-5Y

5F-5P-5T-5Z5F-5P-5U-5V5F-5P-5U-5W5F-5P-5U-5Y5F-5P-5U-5Z5F-5P-5V-5W

5F-5P-5V-5Y5F-5P-5V-5Z5F-5P-5W-5Y5F-5P-5W-5Z5F-5P-5X-5Y5F-5P-5Y-5Z

Livio Zucca


5F-5T-5U-5V5F-5T-5U-5W5F-5T-5U-5Y5F-5T-5U-5Z5F-5T-5V-5W5F-5T-5V-5Y

5F-5T-5V-5Z5F-5T-5W-5Y5F-5T-5W-5Z5F-5T-5X-5Y5F-5T-5Y-5Z5F-5U-5V-5W

5F-5U-5V-5Y5F-5U-5V-5Z5F-5U-5W-5Y5F-5U-5W-5Z5F-5U-5Y-5Z5F-5V-5W-5Y

5F-5V-5W-5Z5F-5V-5Y-5Z5F-5W-5Y-5Z5I-5L-5N-5P5I-5L-5N-5T


Gabriele Carelli


5I-5L-5N-5U5I-5L-5N-5V5I-5L-5N-5W5I-5L-5N-5Y


Livio Zucca

5I-5L-5N-5Z5I-5L-5P-5T5I-5L-5P-5U5I-5L-5P-5V

5I-5L-5P-5W5I-5L-5P-5Y5I-5L-5P-5Z5I-5L-5T-5U5I-5L-5T-5V

Livio Zucca


5I-5L-5T-5W5I-5L-5T-5Y5I-5L-5T-5Z5I-5L-5U-5V5I-5L-5U-5W5I-5L-5U-5Y

5I-5L-5U-5Z5I-5L-5V-5W5I-5L-5V-5Y5I-5L-5V-5Z5I-5L-5W-5Y


Livio Zucca


5I-5L-5W-5Z5I-5L-5Y-5Z5I-5N-5P-5T5I-5N-5P-5U5I-5N-5P-5V


Livio Zucca

5I-5N-5P-5W5I-5N-5P-5Y5I-5N-5P-5Z5I-5N-5T-5U5I-5N-5T-5V

Livio Zucca


5I-5N-5T-5W5I-5N-5T-5Y5I-5N-5T-5Z5I-5N-5U-5V5I-5N-5U-5W5I-5N-5U-5Y

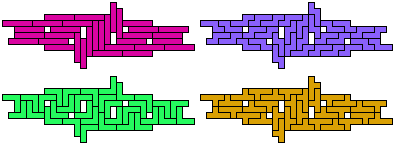

5I-5N-5U-5Z5I-5N-5V-5W5I-5N-5V-5Y5I-5N-5V-5Z

5I-5N-5W-5Y5I-5N-5W-5Z5I-5N-5Y-5Z5I-5P-5T-5U5I-5P-5T-5V

5I-5P-5T-5W5I-5P-5T-5Y5I-5P-5T-5Z5I-5P-5U-5V5I-5P-5U-5W

5I-5P-5U-5Y5I-5P-5U-5Z5I-5P-5V-5W5I-5P-5V-5Y5I-5P-5V-5Z

5I-5P-5W-5Y5I-5P-5W-5Z5I-5P-5Y-5Z5I-5T-5U-5V5I-5T-5U-5W

5I-5T-5U-5Y5I-5T-5U-5Z5I-5T-5V-5W5I-5T-5V-5Y5I-5T-5V-5Z5I-5T-5W-5Y

5I-5T-5W-5Z5I-5T-5Y-5Z5I-5U-5V-5W5I-5U-5V-5Y5I-5U-5V-5Z5I-5U-5W-5Y

5I-5U-5W-5Z5I-5U-5Y-5Z5I-5V-5W-5Y5I-5V-5W-5Z5I-5V-5Y-5Z

5I-5W-5Y-5Z5L-5N-5P-5T5L-5N-5P-5U5L-5N-5P-5V5L-5N-5P-5W5L-5N-5P-5X

5L-5N-5P-5Y5L-5N-5P-5Z5L-5N-5T-5U5L-5N-5T-5V5L-5N-5T-5W

5L-5N-5T-5X5L-5N-5T-5Y5L-5N-5T-5Z5L-5N-5U-5V

5L-5N-5U-5W5L-5N-5U-5Y5L-5N-5U-5Z5L-5N-5V-5W

5L-5N-5V-5Y5L-5N-5V-5Z5L-5N-5W-5Y5L-5N-5W-5Z5L-5N-5X-5Y

5L-5N-5Y-5Z5L-5P-5T-5U5L-5P-5T-5V5L-5P-5T-5W

5L-5P-5T-5X5L-5P-5T-5Y5L-5P-5T-5Z5L-5P-5U-5V

5L-5P-5U-5W5L-5P-5U-5Y5L-5P-5U-5Z5L-5P-5V-5W5L-5P-5V-5Y

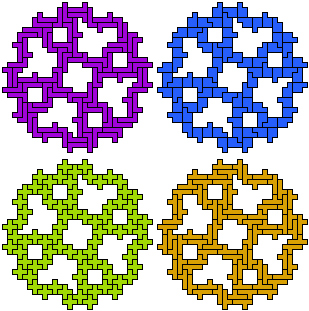

5L-5P-5V-5Z5L-5P-5W-5Y5L-5P-5W-5Z5L-5P-5X-5Y

Livio Zucca

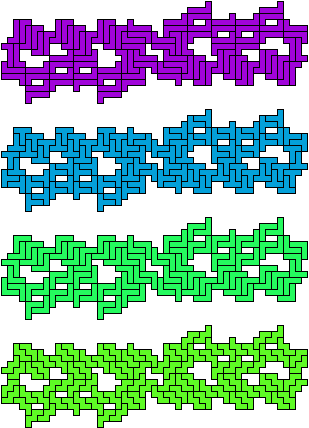

5L-5P-5Y-5Z5L-5T-5U-5V5L-5T-5U-5W5L-5T-5U-5Y5L-5T-5U-5Z5L-5T-5V-5W


Gabriele Carelli

Gabriele Carelli

5L-5T-5V-5Y5L-5T-5V-5Z5L-5T-5W-5Y5L-5T-5W-5Z5L-5T-5X-5Y5L-5T-5Y-5Z

5L-5U-5V-5W5L-5U-5V-5Y5L-5U-5V-5Z5L-5U-5W-5Y

5L-5U-5W-5Z5L-5U-5Y-5Z5L-5V-5W-5Y5L-5V-5W-5Z5L-5V-5Y-5Z


Gabriele Carelli


5L-5W-5Y-5Z5N-5P-5T-5U5N-5P-5T-5V5N-5P-5T-5W5N-5P-5T-5X

5N-5P-5T-5Y5N-5P-5T-5Z5N-5P-5U-5V5N-5P-5U-5W

5N-5P-5U-5Y5N-5P-5U-5Z5N-5P-5V-5W5N-5P-5V-5Y

5N-5P-5V-5Z5N-5P-5W-5Y5N-5P-5W-5Z5N-5P-5X-5Y

5N-5P-5Y-5Z5N-5T-5U-5V5N-5T-5U-5W5N-5T-5U-5Y5N-5T-5U-5Z5N-5T-5V-5W

5N-5T-5V-5Y5N-5T-5V-5Z5N-5T-5W-5Y5N-5T-5W-5Z5N-5T-5X-5Y

5N-5T-5Y-5Z5N-5U-5V-5W5N-5U-5V-5Y5N-5U-5V-5Z5N-5U-5W-5Y

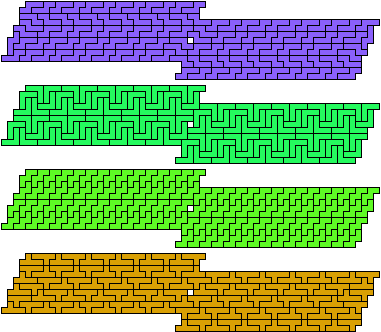

5N-5U-5W-5Z5N-5U-5Y-5Z5N-5V-5W-5Y5N-5V-5W-5Z5N-5V-5Y-5Z

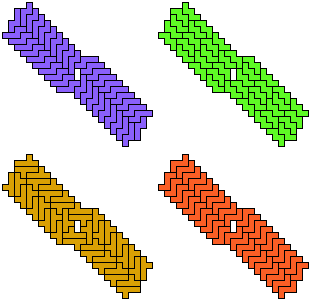

5N-5W-5Y-5Z5P-5T-5U-5V5P-5T-5U-5W5P-5T-5U-5Y5P-5T-5U-5Z

Livio Zucca

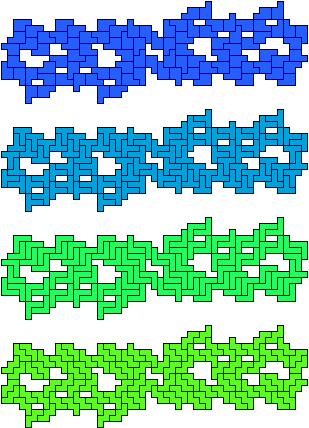

5P-5T-5V-5W5P-5T-5V-5Y5P-5T-5V-5Z5P-5T-5W-5Y5P-5T-5W-5Z

5P-5T-5X-5Y5P-5T-5Y-5Z5P-5U-5V-5W5P-5U-5V-5Y

5P-5U-5V-5Z5P-5U-5W-5Y5P-5U-5W-5Z5P-5U-5Y-5Z5P-5V-5W-5Y

5P-5V-5W-5Z5P-5V-5Y-5Z5P-5W-5Y-5Z5T-5U-5V-5W5T-5U-5V-5Y

5T-5U-5V-5Z5T-5U-5W-5Y5T-5U-5W-5Z5T-5U-5Y-5Z5T-5V-5W-5Y5T-5V-5W-5Z

5T-5V-5Y-5Z5T-5W-5Y-5Z5U-5V-5W-5Y5U-5V-5W-5Z5U-5V-5Y-5Z

5U-5W-5Y-5Z5V-5W-5Y-5Z


Last revised 2014-11-11.
