Similar Polyaboloes Tiling a Home Plate Hexabolo

A polyabolo or polytan is a plane figure formed by joining equal isosceles right triangles along equal edges. A few polyaboloes can form a home-plate hexabolo by joining variously sized copies of themselves. Here I show some examples.

The tilings shown use as few tiles as I know how, and are not necessarily unique under this condition. If you find a tiling with fewer tiles, please write.

See also Similar Polyaboloes Tiling a Triangle, Similar Polyaboloes Tiling a Square, and Similar Polyaboloes Tiling an Octagon.

Monabolo

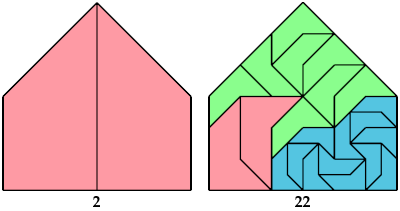

Triaboloes

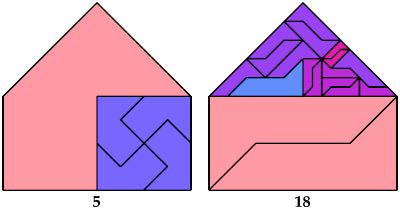

Tetraboloes

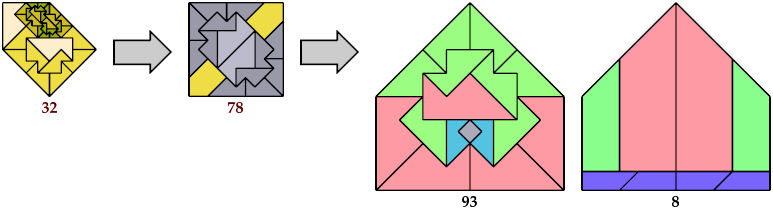

Pentaboloes

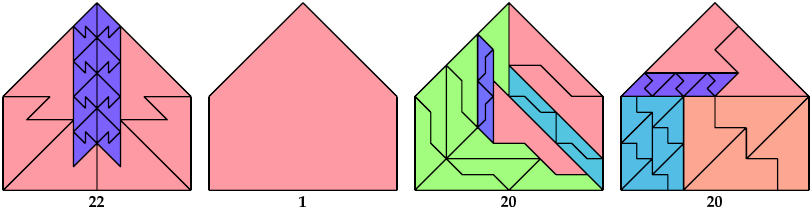

Hexaboloes

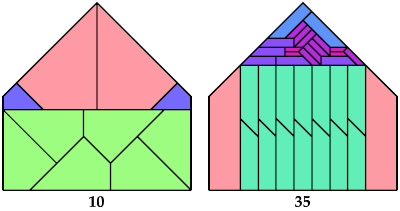

Heptaboloes

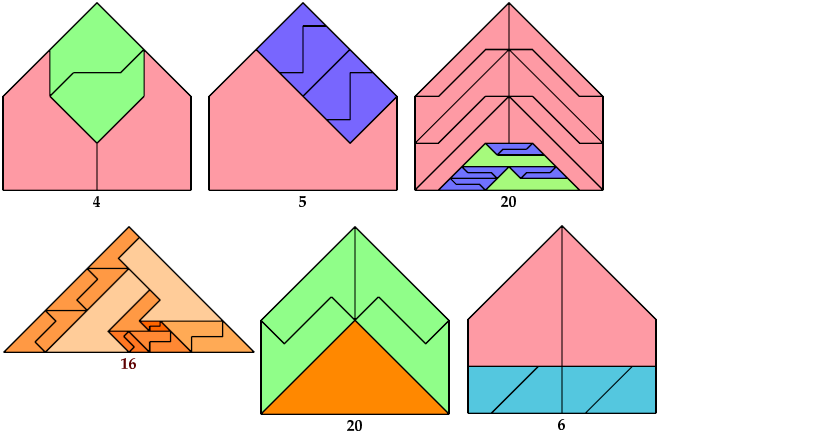

Octaboloes

Last revised 2020-09-29.
