Pentabolo Odd Pairs

Introduction

A pentabolo or pentatan is a plane figure formed by joining five equal isosceles right triangles edge to equal edge. There are 30 different pentaboloes, not counting reflections and rotations.

An odd pair is a figure that can be tiled by an odd number of each of two polyforms. Here I show minimal known pentabolo odd pairs. If you find a smaller solution or solve an unsolved case, please write.

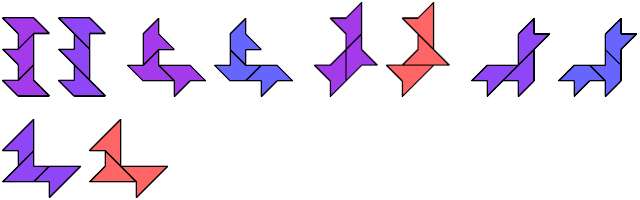

3 Tiles

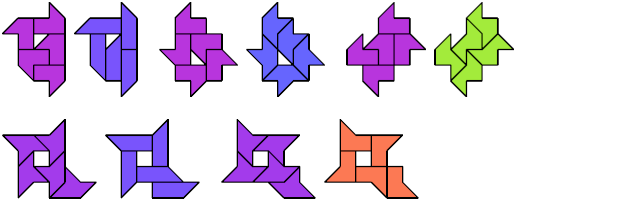

5 Tiles

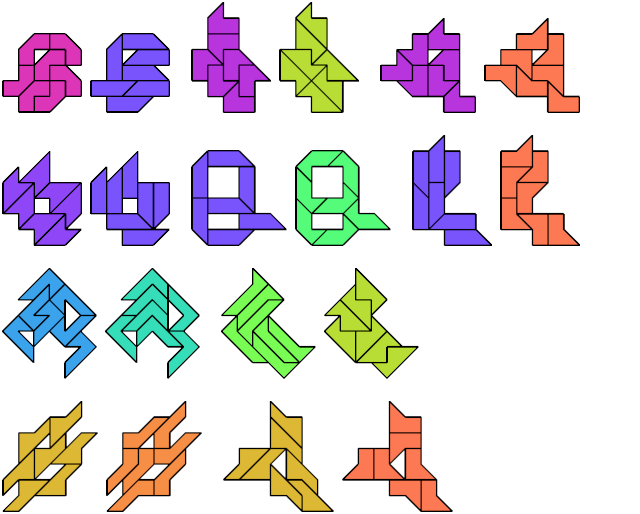

7 Tiles

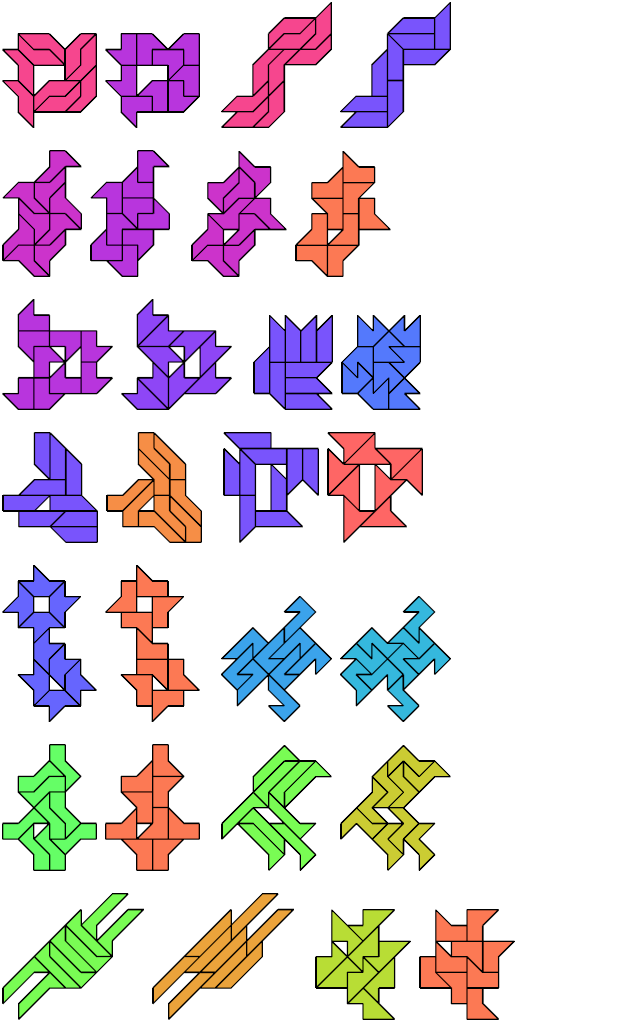

9 Tiles

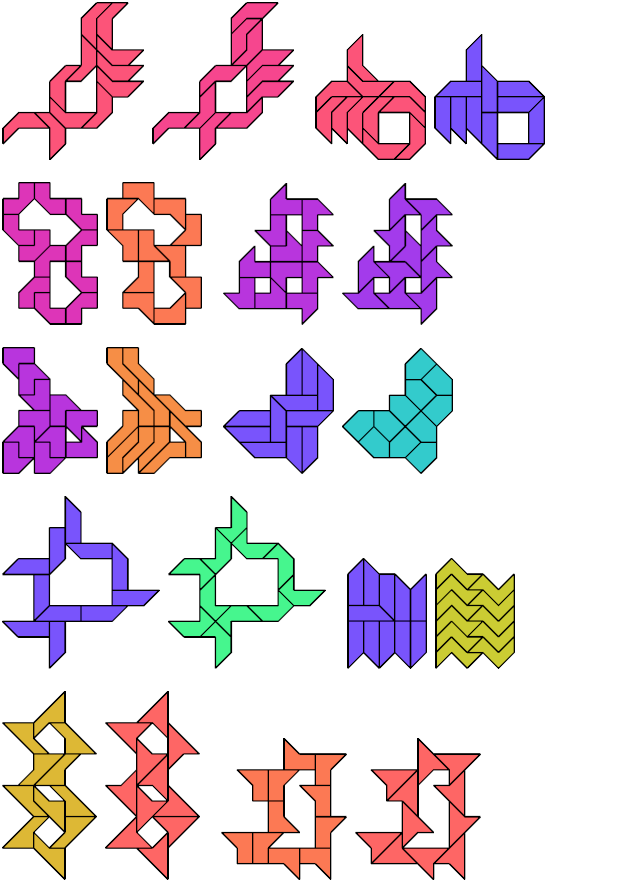

11 Tiles

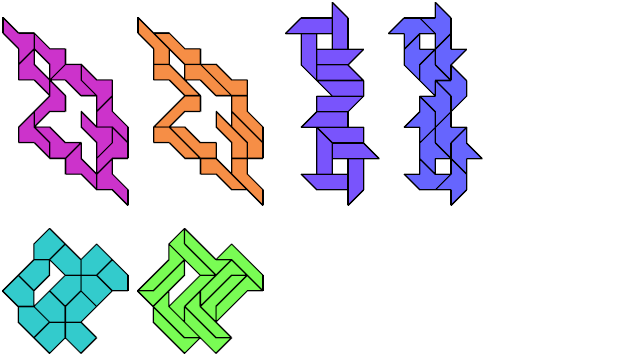

13 Tiles

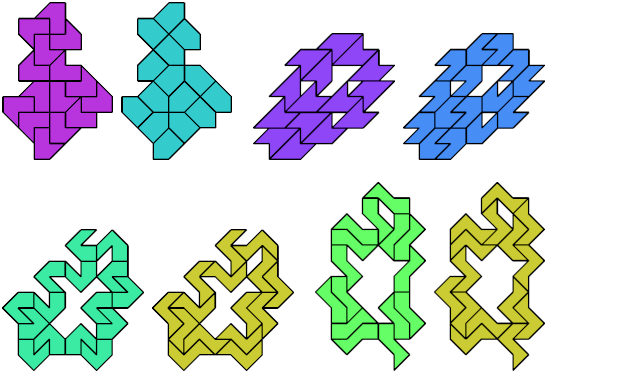

15 Tiles

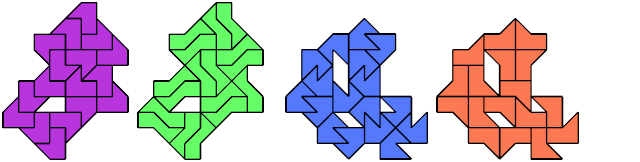

17 Tiles

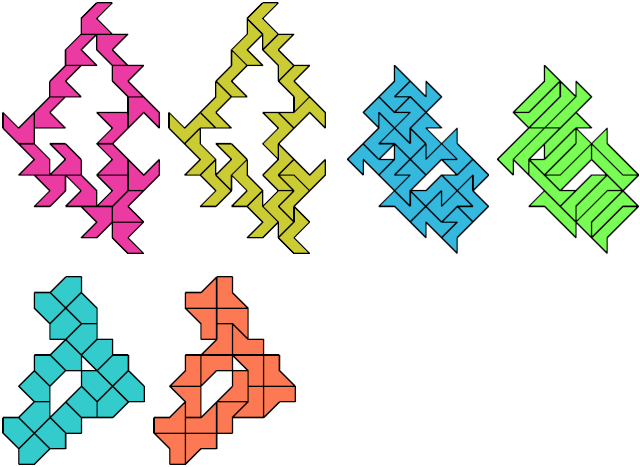

19 Tiles

25 Tiles

Last revised 2014-02-20.
