Galvagni Figures & Reid Figures for Octiamonds

An octiamond is a figure made of eight equilateral triangles joined edge to edge. A Galvagni figure is a figure that can be tiled by a polyform in more than one way—a kind of self-compatibility figure. A Reid figure is a Galvagni figure without holes.

Most of the octiamond Galvagni and Reid figures were found by Dr. Michael Reid of the University of Central Florida.

Galvagni Figures

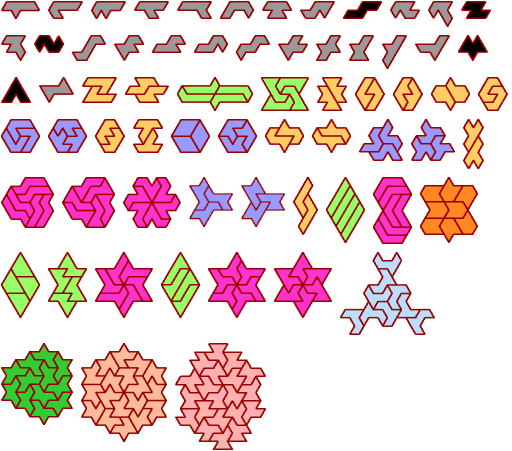

Here are the known minimal Galvagni figures for octiamonds:

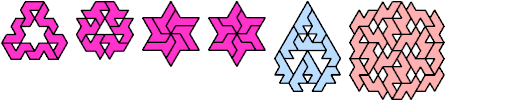

Mirror Variants

Reid Figures

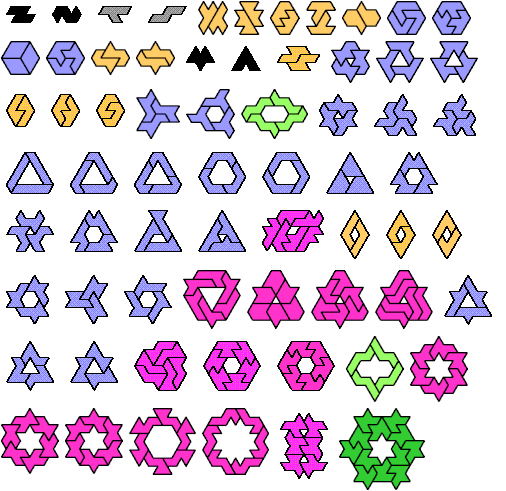

Here are the minimal known Reid figures:

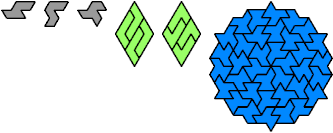

Mirror Variants

Last revised 2015-10-17.
