Galvagni Figures & Reid Figures for Heptiamonds

A heptiamond is a figure made of seven equilateral triangles joined edge to edge. A Galvagni figure is a figure that can be tiled by a polyform in more than one way—a kind of self-compatibility figure. A Reid figure is a Galvagni figure without holes.

All the heptiamond Galvagni figures and most of the Reid figures were found by Dr. Michael Reid of the University of Central Florida.

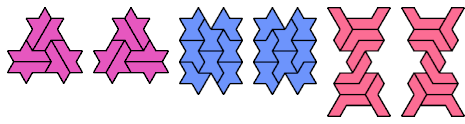

Galvagni Figures

2 Tiles

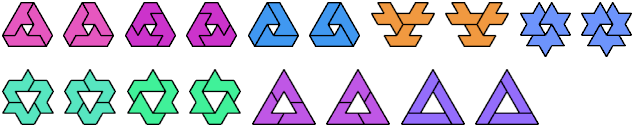

3 Tiles

4 Tiles

6 Tiles

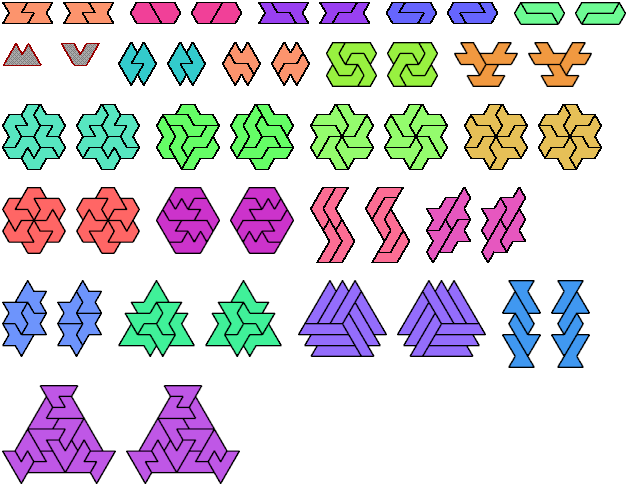

Reid Figures

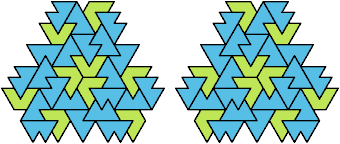

Neither the M heptiamond nor the V heptiamond is known to have a Reid Figure. They can form a Reid Figure when used together:


Last revised 2023-01-18.
